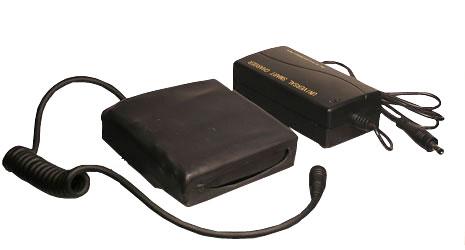

Polymer Li-Ion Battery Pack: 11.1V 9000mAh (99.9wh, 9A rate) with Trail-Tech female plug + 1.5A Smart Charger for Trail-Tech HID light

Polymer Li-Ion Battery Pack: 11.1V 9000mAh (99.9wh) with Trail-Tech female plug + 1.5A Smart Charger for Trail-Tech HID light (8.1)

Polymer Li-Ion Battery Pack: 11.1V 9000mAh (99.9wh, 9A rate) with Trail-Tech female plug + 1.5A Smart Charger for Trail-Tech HID light

Packing

11.1V 9.0Ah Li-Ion rechargeable battery made of 3 pcs Polymer Li-Ion Cell: 3.7V 9000 mAh (86100100A) , 9A drain rate

The battery pack is wrapped by heavy duty heat shrink tube

Included one 1.5A charger (Trail-Tech male plug)

The estimated charging time is 5.7 hours.

Optional for 1 pc A Fire Retardant Bag: 295mmx230mmx75mm --- Reduce the chance of damage if caught fire

This Fire Retardant Bag (Li-Ion Safer Bag) is intended to reduce the chance of damage in the event of catching fire.

Must locate & seal the battery pack in the bag while charging / leaving without any attention

Voltage Voltage: 11.1V (working) 12.6V ( peak) 7.5 V ( cut-off)

Capacity 9000 mAh (99.9 Wh)

Protection

One PCM (10A limited) is installed with the battery pack to protect battery from

Overcharging beyond 4.25V/cell
Over-discharge below 2.85V/cell
Over drain ( >10 Amp)
Balance battery's voltage within 4.25V +/-0.2V during charging

One 9 Amp polyswitch is installed to limit max. discharging current at 9A and to protect wrong polority

Prewired

4' long Trail-Tech female coaxis connector for discharge terminal.

Excluded Trial-Tech Coasxis Male plug, please click here to buy seperately.

It is used for connect to the light by yourself if the light connector won't match our Trail-Tech female coaxis plug

Need additional battery? Please click here to order.

Max. Discharging Rate 9 Amp limited by one polyswitch

Dimensions
1.4" (35mm)thick x 4.1"(104mm) width x 4.2" (107mm)

Weight 1.4lb (635grams)

Smart Tips

For international use. Please order the AC plug adaptor seperately.

Applications

Trail-Tech 13W Single HID light with 7.5 hours.
Trai-Tech 26W Dual HID light 3.7 hours

Warning

Li-Ion battery may be exploded if misusing. We are not responsible for any damages or losses caused by misusing.
Please check battery polarity before plug battery into light. Never make wrong polarity connection.
For safety warning please see the link here

How to charge the pack by included charger

Price: $159.95
Buy Product Online | Visit Store Home
