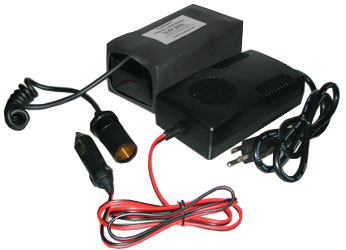

Polymer Li-Ion Battery Pack: 14.8V 12.6Ah (186 Wh) with Car Lighter Socket (14A rate) + Smart Fast Charger (3A)

Polymer Li-Ion Battery Bank: 14.8V 12.6Ah (186 Wh) with Car Lighter Socket (14A rate) + Smart Fast Charger (3A) (15.12)

Polymer Li-Ion Battery Pack: 14.8V 12.6Ah (186 Wh) with Car Lighter Socket (14A rate) + Smart Fast Charger (3A)

Packing

14.8V 12.6 Ah Polymer Li-Ion technology made by four polymer Li-Ion cell 3.7V 12.6Ah in series connection
Wrapped by heavy duty heat shrink tube
Optional for 1 pc A Fire Retardant Bag: 295mmx230mmx75mm --- Reduce the chance of damage if caught fire

This Fire Retardant Bag (Li-Ion Safer Bag) is intended to reduce the chance of damage in the event of catching fire.

Must locate & seal the battery pack in the bag while charging / leaving without any attention

Voltage Voltage: 14.8V (working) 16.8V ( peak) 11.0V ( cut-off)

Capacity 12.6 Ah (186Wh)

Protection

One PCM with balance function is installed with the battery pack to protect battery from

Over-charging beyond 4.25V/cell
Over-discharge below 2.85V/cell
Over-drawn beyond 40 A
Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.

Two pcs 7A polyswitches installed to limit current

Pre-wired

4' long Cigarette lighter socket with coil cord.

Max. Discharging Rate

14A limited by two polyswitches

Dimensions (LxWxH) 6.9"(175mm) x 3.1"(80mm) x 2.3"(60mm)

Weight 2.2 lb (1000 grams)

Smart Charger

Included one 3.0 A Smart Li-Ion battery charger with car lighter plug (male) to recharge the battery pack

The charging time is about 5 hours.

Applications

This high energy / and light weight Polymer Li-Ion battery bank has multi-functions:

Run laptop: Connect the battery pack with this 15-24V DC-DC converter, it can run any laptop computer with selectable output DC voltage from 15-24V.

Burn time = (236Wh / Wattage of laptop) - 0.2 hrs

Run 12V portable devices: Connect the battery pack to this DC-DC 12V regulators, it can run 12V devices up to 12 hours @1.1A
Run a Video light up to 200W:

You may calculate burn time by 236Wh / the wattage of video light

Warning

This Hi-Power Battery Pack can take Halogen Light up to 200W ( PCM may cut-off power if higher wattage )
We are not responsible for any damages or losses caused by misusing (included but not limited to: improper charging/discharging, any changes of this battery pack, miss-assembling battery packs)
Always pay attention when charging the battery pack. Battery shall put in a place or container with fire - proof to avoid any accident
Please always check battery polarity before connection to device.
For safety warning please see the link here

Optional items ( click underlined or picture to order )

Please add a 120W (15V-24V) DC-DC Adaptor to run the battery pack for any laptop.

Please order a fanny bag to carry the battery pack in belt

Please add a Carry bag here to carry this battery pack. ( click picture to order )

Price: $299.99
