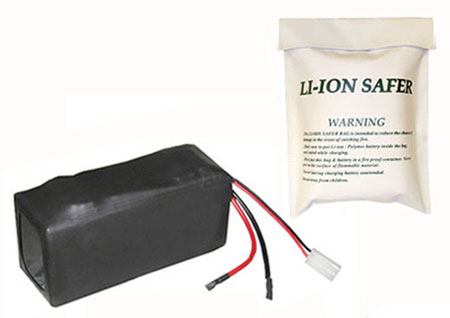

Polymer Li-Ion Battery Module: 25.9v 10Ah (259 Wh) 7A rate with PCM + A Fire Retardant Bag

Polymer Li-Ion Battery Module: 25.9v 10Ah (259 Wh, 7A rate) + A Fire Retardant Bag (21.0)

Polymer Li-Ion Battery Module: 25.9v 10Ah (259 Wh) 7A rate with PCM + A Fire Retardant Bag

Packing

25.9 V 10 Ah pack is made by 7 pcs Polymer Li-Ion cell of 3.7V 10000mAh (9059156) batteries
Wrapped by heavy duty heat shrink tube
Included 1 pc A Fire Retardant Bag: 295mmx230mmx75mm --- Reduce the chance of damage if caught fire

This Fire Retardant Bag (Li-Ion Safer Bag) is intended to reduce the chance of damage in the event of catching fire.

Must locate & seal the battery pack in the bag while charging / leaving without any attention

Voltage 25.9 v (working) 29.4 V ( peak) 17.5V ( cut-off)

Capacity 10000 mAh ( 259 wh)

Prewired

One PCM(10A limited) located on 163mm x 65mm top plane in the battery pack to balance charging and protect battery module from

Overcharge (> 29.6 V)
Overdischarge ( < 16.1V)
Over drain ( > 10 Amp)
Short circuits
Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.

One 7 Amp polyswitch installed to limit discharge current at 7 Amp
Charging terminal: 6" long 21 AWG with tamiya male connector.
Discharging terminal: 6" long 12 AWG wire

Red = Positive
Black = Negative
Need connector for DIY? Please click here to order.

Max. Discharging Rate 7 Amp limited by polyswitch

Dimensions (LxWxH) 163mm (6.4") x 65mm(2.6") x 83mm (3.3")

Weight 3.3 lb (1497 grams)

Smart Tips

Please use either 25.9V Li-Ion smart charger below.

You may use 3.0A Smart Li-ion battery charger with 5.0 hrs charge time.

Must plug the charger and the connector adaptor via only charge terminal with correct polarity.
Batteryspace.com will not be resonsible for any damage caused by missusing.

You may use Smart Charger (2.8A, CE listed, UL approved) for 25.9V Li-ion/Polymer Rechargeable Battery Pack with 5.3 hrs charge time.

Don't combine charge terminal for charging at one time.
If you connect two of these modules in parallel, you can build a 25.9V 20 Ah Battery pack with a 14 Amp discharge rate with suitable wiring.

Applications

Replace 24V NiMH battery pack for Radio
Please click here to see the Comparison Poly-Li pack vs NiMH / SLA to know more the advantages

Warning

Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by using batterypacks.
Please never discharge the battery pack beyond its Max. rating
Must read before place an order. Please download fill the form . We reserve the right to not sell the battery to any one if we feel they cannot handle Li-Ion battery safely
For safety warning please see the link here

Warranty

Limited Warranty: Repair or exchange only within 30 days.

Price: $325.95
Buy Product Online | Visit Store Home
