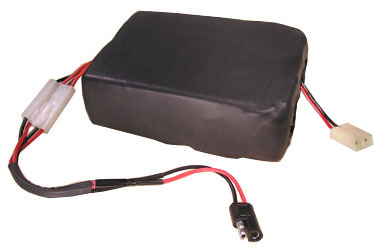

Polymer Li-Ion Battery Module: 25.9v 12.8 Ah ( 331 Wh) with PCB (26.88)

Polymer Li-Ion Battery Module: 25.9v 12.8 Ah ( 331 Wh) with PCB


Packing

Voltage

25.9 v (working) 29.4 V ( peak) 17.5V ( cut-off)
Capacity 12.8 Ah (331.52 Wh)
Protection
  • Two PCM installed with the battery pack and protects the battery from
    • Overcharge (> 21 V)
    • Overdischarge ( <12.5V)
    • Over drain ( > 40 Amp)
    • Short circuits
    • Balancing each cell's voltage
  • Two 7.0 Amp polyswitch installed to limit 14A max. discharging current and to protect wrong polority
Prewired
  • One charging terminals: One 6" long standard male tamiya plug
  • Two discharging terminals: 6" wire of 16 WAG wirewith standard female Tamiya connecotor whcih connect to each 6,15Ah module
  • One 24" length 2 to 1 connector adaptor ( from two male tamiya to water-proof plug ) with 16 AWG wire is included to connect two modules in parallel and form a 12.3Ah battery pack
Max. Discharging Rate 14 Amp limited by polyswitch ( lower rate available upon request )
Dimensions 7"L x 5" W x 2.4" H
Weight 3.8 lbs
Smart Tips
Applications
  • Autonomous submarine to drive a 24V DC motor
  • Replace 24V NiMH battery with higher energy and less weight
  • RC robot and RC aircraft with higher energy needs
Warning
  • Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by misusing (included but not limited to: mis-charging, mis-discharging, any changes of this battery pack, mis-assembling batterypacks)
  • Never discharge the battery pack beyond Max. limit.
  • Must read before place an order. Please download fill the form and fax back to 510-525-4728. Attn: BatteySpace-Tech.
  • For safety warning please see the link here
Price: $399.95
