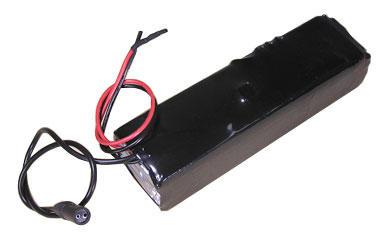

Polymer Li-Ion Battery Module: 18.5v 6400mAh with PCM (9.6)

Polymer Li-Ion Battery Module: 18.5v 6400mAh with PCM


Packing
Voltage 18.5V (working) 21 V ( peak) 12.5V ( cut-off)
Capacity 64000 mAh ( max 118 wh)
Protection
  • PCM with cell balance function installed with the battery pack and protects the battery from
    • Over-charge (> 21 V)
    • Over-discharge ( <12.5V)
    • Over drain ( > 10 Amp)
    • Short circuits
    • Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
  • 7.2 Amp polyswitch installed to limit max. discharging current and to protect wrong polarity
Pre-wired
  • Charging terminal: 6" wire of 21 AWG with two hole universal connector
  • Discharging terminal: 6" wire of 16 WAG wire without connector
Max. Discharging Rate 7 Amp limited by polyswitch ( lower rate available upon request )
Dimensions 7"L x 2"W x 2.5"H
Weight only 21.5 oz
Smart Tips
  • You may choose our 1.5A Smart Li-Ion battery charger to recharge this battery pack. The estimated charging time is 6 hours
  • If you connect two of these modules in parallel, you can build a 18.5V 12.3 Ah Battery pack with a 8.4 Amp discharge rate.
  • You can connect this battery to DC-DC regulators to provide 3V - 24V out pout for as a mobile power
  • Need a connector, please find one here
Applications
  • Autonomous submarine to drive a 12V DC motor
  • RC robot and RC aircraft with higher energy needs
  • Building external battery packs for Laptop computers with DC input 19-21V. Gives laptops an extra 5 hours of running time!!!
Warning
  • Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by misusing (included but not limited to: improper charging / discharging, any changes of this battery pack, misassembling battery packs)
  • Please never discharge the battery pack beyond its Max. rating
  • Must read before place an order. Please download fill the form and fax back to 510-525-4728. Attn: BatteySpace-Tech.
  • For safety warning please see the link here
Pack Configuration

Price: $169.95
Buy Product Online | Visit Store Home
