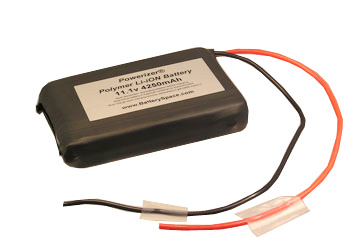

Polymer Li-Ion Battery Module: 11.1V 4250mAh Prewired PCM (3.825)

Polymer Li-Ion Battery Module: 11.1V 4250mAh Prewired PCM


Packing & Wiring
  • 11.1V 4250 mAh Polymer Li-Ion pack is made by 3pcs Polymer Li-Ion cell of 3.7V 4250mAh (5467100) in series connection
  • The battery pack is Wrapped by black PVC shrink tube
  • 6" length 18 AWG wires without connector
Voltage Voltage: 11.1V (working) 12.6V ( peak) 8.25V ( cut-off)
Capacity 4250 mAh min. (47.17 wh)

Protection

(click underlined to see details specs for components)
  • One PCM (10A) installed with the battery pack and protects the battery from
    • Ove-rcharge (>12.6V)
    • Over-discharge ( < 7.5 V)
    • Over-drain ( > 10 Amp)
    • Short circuits
  • One 4.2 Amp polyswitch installed to limit max. discharging current at 4 A
Operation temperature

-20 oC - 50 oC

Max. Discharging Rate 4.2 Amp limited by polyswitch
Cycle Life > 500 cycles under 0.5C ( 2.1A) charging and discharging condition
Dimensions (LxWxH) 106mm(4.2") x 70mm(2.8") x24mm (0.9")
Weight 350 grams
Smart Tips
Applications
  • Can run 12V - 14.8V portable DC device up to 4 Amp drain
  • Running time under 400mA peak at 14.8V is >10 hours
Warning
  • Li-Ion battery may be exploded if mis-using. We are not responsible for any damages or losses caused by misusing (included but not limited to: miss-charging, miss-discharging, any changes of this battery pack, mis-sassembling batterypack) .
  • Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident
  • Please check battery polarity before plug battery into light. Never make wrong polarity connection. Please check
  • Please also read our safety warnings

Price: $65.95
Buy Product Online | Visit Store Home
