Polymer Li-Ion Battery: 3.7 V 10 Ah ( 37Wh, 7A rate)

Polymer Li-Ion Battery: 3.7 V 10 Ah ( 37Wh, 7A rate) (3.0)

Polymer Li-Ion Battery: 3.7 V 10 Ah ( 37Wh, 7A rate)

Packing

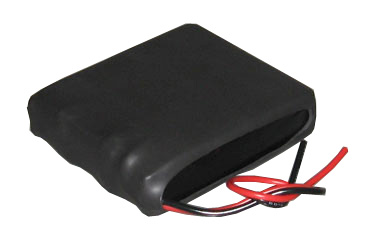

3.7V 10000mAh Li-Ion Battery pack is made of 2 pcs of 3.7V 5000 mAh (PL896474) with Built in Protection IC (PCB) & Polyswitch to avoid battery over charge and over discharge

Optional for 1 pc A Fire Retardant Bag: 295mmx230mmx75mm --- Reduce the chance of damage if caught fire

This Fire Retardant Bag (Li-Ion Safer Bag) is intended to reduce the chance of damage in the event of catching fire.

Must locate & seal the battery pack in the bag while charging / leaving without any attention

Voltage Voltage: 3.6V (working) 4.2V ( peak) 2.5V(cut-off)

Capacity 10000 mAh, 37 Wh

Energy Density 185Wh/kg

Protection

One PCB (8.5A) installed with the battery pack and protects the battery from

Overcharge (>4.2V)
Over-discharge ( <2.5 V)
Over drain ( >8.5 Amp)
Short circuits

One 7A Polyswitch

Pre-wired
6"long 18 AWG Prewired.( Blackwire: negative, Red wire: Positive)

Max. Discharging Rate 7 Amp limited by Polyswitch

Max Charging Rate 2.5Amp

Dimensions (LxWxH)
75mm (3.0")x 64mm (2.5") x 20mm (0.8")

Weight 202 grams (7.0z)

Smart Tips

You can use our Smart Fast Charger (3.0A) for 3.7 V Li-ion Rechargeable Battery Pack to recharge the battery pack, charge time is about 5 hours.
Other battery module made by 3.7V 5000mah cell can be found here

Applications

Perfect for memory buck-up, external battery bank for MP3
Building battery pack for higher voltage or higher capacity without extra PCB.
Perfect DIY for your own battery pack by using our connector at connector section.

Warning

Li-Ion battery may be exploded if mis-using. We are not responsible for any damages or losses caused by misuse.
Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident .
Please don't use the battery modules to make series connection or parallel connection withmore than 2 packs, otherwise battery service life may be reduced.
For safety warning please see the link here

Price: $63.99
Buy Product Online | Visit Store Home
