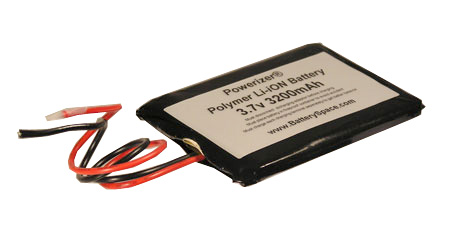

Polymer Li-Ion battery Module, 3.7 V 3200mAh (PL605585) - Prewired with PCB (IC) and Polyswitch (PL605585WR) (0.96)

Polymer Li-Ion battery Module, 3.7 V 3200mAh (11.8 Wh) - Prewired with PCB (IC) and Polyswitch (PL605585WR)


Packing
Voltage Voltage: 3.7V (working) 4.2V ( peak) 2.5V(cut-off)
Capacity 3200 mAh, 11.8 Wh
Protection
  • One PCB (8.5A) installed with the battery pack to protect the battery from
    • Over-charge (>4.2V)
    • Over-discharge ( <2.5V)
    • Over drain ( > 8.5A)
    • Short circuits
  • One 7.0 Amp polyswitch installed to protect battery from over-discharge. (limit Max discharge current 7.0 Amp)
Prewired

7.5" 18 AWG wire without connector (Red - positive, black - negative)

Max. Discharging Rate 7 Amp limited by Polyswitch
Dimensions (LxWxH) 87mm x 55mm x 11mm (3.4" x 2.2" x 0.4")
Weight 2.6oz (74g)
Smart Tips
Applications
  • Perfect for memory back-up, external battery bank for MP3
  • Build battery pack for higher voltage or higher capacity without extra PCB
  • Perfect DIY for your own battery pack by using our connector at connector section.
Warning
  • Li-Ion battery may exploded if miss-using. We are not responsible for any damages or losses caused by misusing (included but not limited to: miss-charging, miss-discharging, any changes of this battery pack, miss-assembling battery pack).
  • Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident
  • Please don't use the battery modules to make series connection or parallel connection with more than 2 packs, otherwise battery service life maybe reduced
  • For safety warning please see the link here

Price: $26.95
Buy Product Online | Visit Store Home
