PCM with Equilibrium function for 37V Li-Ion Battery Pack at 40A limit

PCM with Equilibrium function for 37V Li-Ion Battery Pack at 40A limit (PCM-L10S30-062)


Protection Circuit Module for 10 Cells (37V) Pack

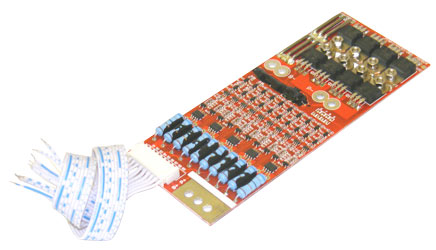

This protection circuit is specially designed for 37 V Li-Ion / polymer Li-Ion Battery pack with 40 A discharging rate. Different than normal PCB, it provides equilibrium function after battery pack is fully charged. PCM will detect each cell's voltage and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps Li-Ion cells have longer service life. Also the PCM will provide the following protections:

  • Prevent 37V Li-Ion Battery pack from over charge
  • Balance each cell at Max. 4.22/cell (required voltage tolerance within 0.2V for each cell)
  • Protect 37V Li-Ion Battery pack from over discharge
  • Limit 37V Li-Ion Battery pack's discharging current below 40 A.
  • Please download the specification here.

Features:

  • Manufacture part# PCM-L10S30-062
  • Apply for 10 Cells Li-ion / Li-polymer Battery Pack with discharging current < 40A
  • Internally Trimmed Voltage Limits to balance each cell. Please wait 30 minutes for equilibrium function to take place after charger indicated battery pack is fully charged.
  • 40A discharge current limit detection
  • Dimension LxWxH :145mm (5.70") x 59mm (2.3") x 9mm (0.4")
  • In order display battery energy level from the PCB, you need to order a fuel gauge display here

Warning

  • If you want to use this pcm for a battery that is rated less than 40A drain, you must add additional protection device to protect the battery itself. Such as: proper rated polyswitch.
  • To achieve balance, each cell in battery pack must has equal voltage within tolerance of 0.2V. When charger LED turn Green, allow 30 minutes for pack to balance before use
  • You must be professional in Li-Ion battery pack to buy the PCM. Misusing PCM may cause battery damage or explode. We are not responsible for any damage caused by user.

Batteryspace is not responsible for any damage cause by misunderstanding and misuse! Please read the following instruction carefully before assembling.

Price: $69.95
Buy Product Online | Visit Store Home
