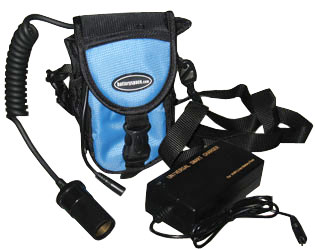

On-the-Go Power Pack : 14.8V 5.2Ah (77 Wh) Li-ion Box battery with Switch & Fuel Gauge + Smart Charger + Belt Bag

On-the-Go Power Pack : 14.8V 5.2Ah (77 Wh) Li-ion Box battery with Switch & Fuel Gauge + Smart Charger + Belt Bag

On-the-Go Power Pack : 14.8V 5.2Ah (77 Wh) Li-ion Box battery with Switch & Fuel Gauge + Smart Charger + Belt Bag

Packing

One Li-Ion Box Battery : 14.8V 5.2Ah (77 Wh) with Switch & Fuel Gauge + 1.5A Smart Charger

77 Watts hours energy ( 14.8V 5.2Ah, 18650x8 cells inside)

Waterproof power Switch with LED light installed. When power ON, Red LED is ON.

Fuel gauge installed in front panel to indicate energy level in the battery pack. Touch LED button to check battery, push it again to turn off LED for energy saving

One Blue nylon bag is included for carrying the battery on belt or shoulder

Voltage Voltage: 14.8V (working) 16.8V ( peak) 11.0V ( cut-off)

Capacity 5.2 Ah ( 77 Wh)

Protection

PCB and Polyswitch are built in to protect battery from overcharge and overdischarge.

Prewired

Discharge terminal.

4' long Cigarette lighter socket with coil cord.

Charge Terminal

2" long two pin universal female plug

Max. Discharging Rate

6.5 Amp Max.

Dimensions (LxWxH) 127mm (5.0") x 3.2" (82mm) x 1.6" (41mm)

Weight 1.3 lb (589 grams)

Smart Tips

Included one 1.5A Smart Li-Ion battery charger to recharge the battery . The charging time is about 5.2 hours.

Must charge the pack via charge terminal only

Connect the battery pack with 15-24V DC-DC regulated adaptor (120W) , it can run any laptop computer with selectable output DC voltage from 15-24V.
Connect the battery pack to DC-DC 12V regulator, it can run 12V portable devices
Burntime = 77 Wh / Wattage of device

How to charge the pack by included 1.5A charger

Applications

As a external battery , it can run Laptop computer for > 10 hours ( DC-DC adaptor required)
Power video light up to 50w at (1.5hr burn-time)

Warning

Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by misuse.
Always pay attention when charging the battery pack. Battery shall put in a place or container with fire - proof to avoid any accident
Please always check battery polarity before connection to device.
For safety warning please see the link here

Price: $145.95
Buy Product Online | Visit Store Home
