On-the-Go Power Pack : 14.8V 15.6Ah (230 Wh) Li-Ion Battery in Belt Bag + Smart Charger for Any Portable Devices

On-the-Go Power Pack : 14.8V 15.6Ah (230 Wh) Li-Ion Battery in Belt Bag + Smart Charger for Any Portable Devices (18.72)

On-the-Go Power Pack : 14.8V 15.6Ah (230 Wh) Li-Ion Battery in Belt Bag + Smart Charger for Any Portable Devices

Packing

One 14.8V , 15.6 Ah battery pack is made by 24 pcs High quality 18650 2600mAh Li-Ion cells, packed three 14.8V 5.2Ah modules in parallel with 3 PCB

The battery pack is Wapped by heavy duty shrink tube

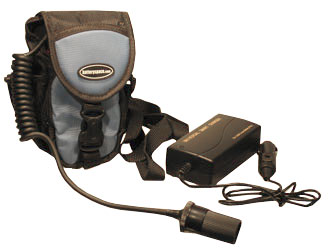

One Blue nylon bag is included for carrying the battery in belt or shoulder

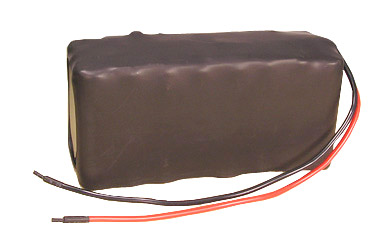

Li-Ion Battery Module: 14.8v 15.6 Ah (230 Wh) With Prewired PCB

Voltage Voltage: 14.8V (working) 16.8V ( peak) 11.0V ( cut-off)

Capacity 15.6 Ah ( 230 wh)

Protection

Three PCB (IC) installed with the battery pack and protects the battery from

Overcharge (>16.8V)
Overdischarge ( <10.4V)
Over drain ( > 24 Amp)
Short circuits

Three 7 Amp polyswitch installed in the pack ( each polyswicth in one 5.2 Ah module ) to limit max. discharging current to 14 Amp and to protect wrong polority

Prewired

Charge / Discharge terminal.

4' long Cigarette lighter socket with coil cord.

If you need a Water-proof male plug, please order here ( not included in this package)

Max. Discharging Rate

21 Amp Max. limited by 3 polyswitchs ( 7A) in parallel connection

Dimensions 5.7" L x 2.9" W x 2.5" H

Weight Only 2.4 lb

Smart Tips

Included one 1.5A Smart Li-Ion battery charger with cigarette male plug to recharge the battery The charging time is about 12 hours.
Connect the battery pack with 15-24V DC-DC regulated adaptor (120W) , it can run any laptop computer with selectable output DC voltage from 15-24V. The power bank can run laptopn upto 12 hours.
Connect the battery pack to DC-DC 12V regulators, it can run 12V portable devices

Applications

It is excellent for any portable Devicem such as
As a external battery , it can run Laptop computer for > 10 hours ( DC-Dc adaptor required)
Power video light up to 100w at > 2 hours
Halogen Bikelight at 30W for more than 7 hours

Warning

Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by misusing (included but not limited to: mis-charging, mis-discharging, any changes of this battery pack, mis-assembling batterypacks...)
Always pay attention when charging the battery pack. Battery shall put in a place or container with fire - proof to avoid any accident
Please always check battery polarity before connection to device. Never make wrong polarity connection
For safety warning please see the link here

Price: $349.95
