NiMH Battery Pack: 13.2V, 4500mAh with TrailTech Lockable Plug

13.2V, 4500mAh NiMH Battery with TrailTech Lockable Plug

NiMH Battery Pack: 13.2V, 4500mAh with TrailTech Lockable Plug

Packing

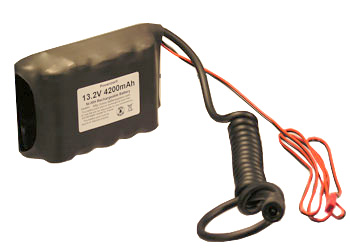

13.2V battery pack made of high quality NiMH 11x 4/3 AF cells of 4500 mAh capacity.
Wrapped by heavy duty fire retardant heat shrink tube

Voltage 13.2 V ( working ) 16 V ( peak)
Capacity 4500 mAh or 59.4 wh

Charging Rate Standard 1.8 A Max. 2.2 A

Discharging Rate

Standard rate: 2.2 Amp ( Recommended and warranted)
Highest rate for continuous running: 4.2 Amp
Max. current 5 Amp ( limited by thermostat )

Protection

One 7 amp polyswitch installed to protect battery short circuit

Pre-wired

4' long of the Trial-Tech Co-axis female plug.

Please make sure the connector of the pack will fit with your light.
Need 13.2V two pin female water-proof NiMH pack? Please click here to buy separately.

Optional for Trail-Tech co-axis male plug?Please click here to order seperately.

Dimension (LxWxH) 4.3" (110mm) x 2.8" (70mm) x 1.4" (35mm)

Net Weight 1.4 lb ( 23 Oz)

Applications

This battery pack fits withTrail-Tech HID light system

4.5 hrs burn time for 13W Trail-Tech HID light.
2.2 hrs burn time for 26W Trail-Tech HID light.
1.9 hrs burn time for 30W Trail-Tech HID light.

Tips & Optional

For faster and safe charging, please choose our 9.6-18V Universal Smart charger . The charging time is about 3 hrs at selected 1.8A current.
Excluded the connector adaptor for charging. Please click here to order separately.
Please click here to view how to charge the pack. ( Excluded charger and the connector adaptor)
How to DIY for replacing NiteRider Classic water bottle battery ? Please click here for the information

Cautions

Temperature sensor ( BEC red connector ) shall be connected charger before charging battery pack which is double protection of battery from overcharging.
Please don't discharging the battery pack below 10V ( 1.0 V / cell). Deep discharging may damage NiMH battery pack.
Charging battery immediately every time it is discharged. Never storage the battery pack at below 11V.
Please read more safety warning at the link before buying
