NiMH Battery Pack: 12V 13Ah (156 Wh - 2x5F ) for Walking Robot / Mobile Power

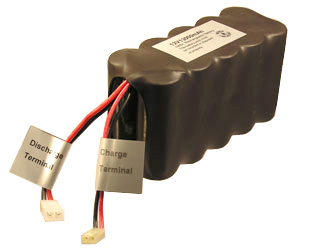

Packing 12V 13 Ah (13000mAh) NiMH Battery Pack made by 10 pcs high quality NiMH F size cell assembled side by side in two rows (5+5) Wrapped by heavy duty heat shrink tube Voltage 12V ( working ) 14.5V ( peak) Capacity 13Ah or 156 wh Charging Rate Standard 1.8 A Max. 5 A ( for each 12V 10Ah module) Discharging Rate Standard rate: 13Amp (Recommended and warranted) Highest rate for continuous running: 30Amp Max. Rate for short time: 60Amp (Not recommend as working rate ) Pre-wired Two terminals are in the battery pack. Charging and discharging plugs are separated for protecting battery from overcharging and power off during discharging Discharging plug is male standard tamiya connector with 14 AWG wires Charging plug is mini male tamiya connector with 18 AWG wires which connected via a 65o thermostat to battery pack to protect battery from overcharged. a connector adaptor from mini tamiya to standard tamiya for connecting a battery charger is included Dimension (LxWxH) 6.55" (166mm) x 2.75" (70mm) x 3.6" (91mm) Weight 5.5 lb (2494 grams) Optional You may choose 12V smart NiMH battery pack charger (click for detail specs) to recharge the battery pack. Must charge battery from charging terminal The charge time is about 9 hrs. Please set current level to 1.8A You may consider advanced 12.8V LiFePO4 battery packs with higher energy density and 4 times longer cycle life ( click underlined to order ) Applications Perfect for walking robot -- twice the running time of NiCd power pack. Perfect for Sea Scooter: 50% less weight than original SLA battery. Good for any 12VDC portable device application. Cautions Please don't discharge the battery pack below 10V ( 1.0 V / cell). Deep discharge may damage NiMH battery pack. Charge battery immediately every time it is discharged. Never store the battery pack at below 10V. Don't use charger terminal to discharge battery Please read more safety warning at the link How To Charge The Battery Pack: Please download Instruction manual for charging NiMH pack by CH-UN180 Charger.
