| Packing |

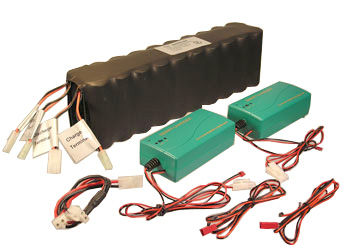

- 12V 26Ah NiMH Battery pack is made by parallel connecting two 12V 13Ah NiMH pack modules with 20 pcs NiMH F size cell
- Wrapped by heavy duty heat shrink tube
|
| Voltage |
12V ( working ) 14.5V ( peak) |
| Capacity |
26Ah or 312 wh |
| Charging Rate |
Standard 1.8 A Max. 5 A ( for each 12V 10Ah module) |
| Discharging Rate |
- Standard rate: 10Amp ( Recommended and warrantied)
- Highest rate for continuous running: 30Amp
- Max. Rate for short time: 50Amp ( Not recommend as working rate )
|
| Pre-wired |
- 2 Charging terminals: 18AWG wire with mini Tamiya connector female and connect with a 65o thermostat.
- 2 Discharging terminals: 14 AWG wire standard Tamiya connector female with 30A rating
- When discharging, please use 2 to 1 Tamiya Connector ( included) to connect three 12V modules in parallel and form a 12V 30Ah battery pack.
|
| Dimension |
13.25"L x 2.65"W x 3.6"H |
| Net Weight |
11 lbs |
| Smart Charger |
|
| Tips |
|
| Applications |
Designed for mobile device in field and replacing Lead acid batteries of electric bikes and scooters with 50% less weight, and Environmental friendly. |
| Cautions |
- Please don't discharging the battery pack below 10V ( 1.0 V / cell) Deep discharging may damage NiMH battery pack.
- Charging battery immediately every time it is discharged. Never storage the battery pack at below 10V.
- Please don't use charger terminal to discharge battery
- Please read more safety warning at the link
|
| How to Charge and Use the battery pack: |
|
| Battery pack Configuration after packed |
 |
