Packing	12 V 20 Ah NiMH Battery Pack consists of two 12V 10 Ah NiMH battery modules in parallel connection. Wrapped by heavy duty heat shrink tube
Volatge	12V ( working ) 14.5V ( peak)
Capacity	20Ah or 240 wh
Charging Rate	Standard 1.8 A Max. 5 A ( for each 12V 10Ah module)
Discharging Rate	Standard rate: 10Amp ( Recommended and warrantied) Highest rate for continuous running: 30Amp Max. Rate for short time: 50Amp ( Not recommend as working rate )
Prewired	2 Charging terminals: 18AWG wire with mini Tamiya connector female and connect with a 65o thermostat. 2 Discharging terminals: 14 AWG wire standard Tamiya connector female with 30A rating When discharging, please use 2 to 1 Tamiya Connector ( included) to connect three 12V modules in parallel and form a 12V 30Ah battery pack.
Dimension	13.25"L x 2.65"W x 2.4"H
Net Weight	7.1 lbs
Smart Charger	Two 12V smart NiMH battery pack chargers (clickfor detail specs) Must charge two 12V 10Ah battery modules separately The charging time is about 7 hrs. Please set current level to 1.8A
Tips	You may choose other connectors listed in our store and put it to the end of 3 to1 adaptor without extra cost You may consider advanced 12.8V LiFePO4 battery packs with higher energy density and 4 times longer cycle life ( click underlined to order )
Applications	Designed for mobile device in field and replacing Lead acid batteries of electric bikes and scooters with 50% less weight, and Environmental friendly.
Cautions	Please don't discharging the battery pack below 10V ( 1.0 V / cell) Deep discharging may damage NiMH battery pack. Charging battery immediately every time it is discharged. Never storage the battery pack at below 10V. Please don't use charger terminal to discharge battery Please read more safety warning at the link
How to Charge and Use the battery pack:	In order to achieve the best power balance during charger, you shall charge each 12V battery modules in same time separately. Please download Instruction manual for charging Nimh pack withseparatecharging terminal by Chun-180 Charger. In order to discharge, you shall plug 3 to 1 connector (parallel connected ) into each 12V pack 's plug, then make 12V 30Ah battery pack.

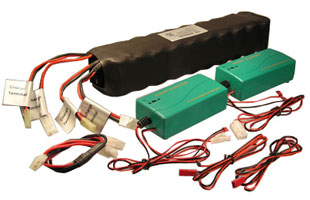

Battery pack Configuration after packed
