Features	Universal Fast and Smart Charger is designed for charging any NiMH / NiCd Battery Pack from 4.8V - 10.8V , e.g. 4 to 9 cells pack One charger for all types of battery packs of RC airplane, RC car and Airsoft . LED flashing red-green-red before charging in order to test the IC of the charger if ready to use. It is a very smart charger. Just plug it in and wait for the battery to get charged. Red LED indicating charging, and Green LED means fully charged Short circuit protection: No output voltage from the charger if the battery is not connected. 120-240V AC input for worldwide use. First smart charger that get UL safety approved on the market
Specs & Functions	Detect battery pack voltage (from 4.8 - 10.8V) and choose proper charging voltage automatically Cut-off power automatically by negative delta V IC when battery pack is fully charge. Built in IC Protecting battery from over current, short circuit & reverse polarity. Note: If you try to charge mini airsoft battery, you must order a smart charger for Mini airsoft , or choose a connector adaptor from standard Tamiya to mini Airsoft tamiya If you try to charge RC air or car battery with mini tamiya, you must order rc car adaptor .
Charging Current	Two current levels, 2A and 1 A, are selectable by a switch for both high capacity ( > 2100mAh) and low capacity battery pack ( < 2000mAh) For battery pack between 1000 mah and 2000 mah, please use the low level switch -- charging rate: 1 A For battery pack over 2000 mAh, please use the high level switch -- charging rate: 2A
Charging time	The smart charger will cut-off power automatically when battery is full. However, Charging time can be estimated as the follow: Time ( Hrs ) = Battery capacity (Ah) / Charging current ( 1A or 2 A )
Dimension	1.5"H X 2.5"W X 5.5"L
Weight	0.6 lb.

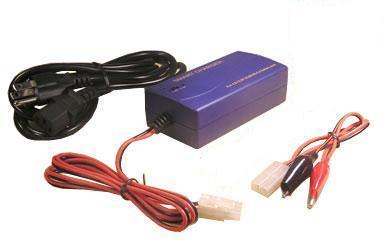

Accessories included	One standard female Tamiya connector with 12" length cable is installed with the charger. It will fit with our RC car batteries from 6V - 12V One 5' cable with male connector and two clips which allow you to connect a battery pack to the smart charger. one 4' cable with PC connector is included to connect charger to AC power.
Optional	If you want to recharge mini Airsoft battery pack, you shall order a connector adaptor from standard female Tamiya to Mini Tamiyra here to connect charger to battery pack. If you want to recharge RC air or the battery pack, you may consider ordering a matched connector adaptor to connect the charger to battery pack
Certificated	This smart charger has been certified by both CE & UL approved Please download specs 4.8V - 10.8V NiMH / NiCd the charger
Precautions	Please don't use the charger to charge battery pack with capacity less than 1000 mAh If you have question on what current setting to use, please check the battery specification to find out what is the maximum charging current before selecting the charging current. The charger is designed for indoor use only. The charger should be horizontally positioned and work in well ventilated condition, avoid moisture and keep it away from inflammable explosive goods. Ambient temperature shall not be more than 40 degree C when using the charger Remove the AC power before connect or disconnect the charger with batteries. Don't try to disassemble the charger.
