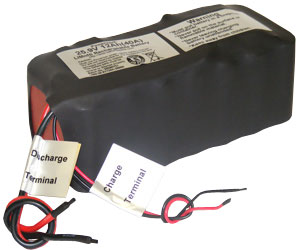

Packing	25.9 V 12 Ah LiMnNi rechargeable battery Module is made of 21 pcs hi-power LiMnNi 4000 mAh cylindrical 26650 cell in 7S3P (3Rx7C) configuration with heavy duty shrink wrapped
Voltage	Voltage: 25.9 V (working) 29.4 V (peak) 19.25V ( cut-off)
Capacity	12 Ah (310.8 Wh)
Cycle life	> 1000 cycles at 1 C rate
Protection	One PCM (40A limited) installed with the battery pack and protects the battery from Overcharge (> 29.4 V) Over discharge (<19.25 V) Over drain ( >40Amp) Short circuits Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
Prewired	Discharge terminal: 6" long 12 AWG open end wire Charge terminal: 6" long 18 AWG open end wire
Charging rate	12 A Max
Max. Discharge Rate	10 Amp ( continuous ) 40 Amp ( < 30 seconds )
Dimensions (LxWxH)	190mm(7.5") x 84mm (3.3") x 84 mm(3.3")
Weight	2150 grams (4.7Lb) Capacity is 30% more than LiFePO4 pack of 25.6V 10.2Ah (261.12Wh, 5.9Lb) Weight 20.39% less than 25.6V 10.2Ah (261.12Wh, 5.9Lb), and 37.33% less than 24V 10Ah ( 240Wh, 7.5Lbs) NiMH pack,
Smart Tips	You may choose our chargers below. Smart Charger (6.0A) for 25.9V Li-ion/Polymer Rechargeable Battery Pack + the connector adaptor . The estimated charging time is 3.15 hours or Smart Charger (3.0A) for 25.9V Li-ion/Polymer Rechargeable Battery Pack ( Standard Female Tamiya Plug) 100- 240V. The estimated charging time is 6.3 hours
Applications	E-Bike for replacing 24V Lead acid, 24V NiMH battery and 25.9V10Ah Li-Ion battery with longer cycle life and lower cost
Warning	25.9V LiMnNi battery pack shall be cut-off at =<29.4V ( <=4.2V/cell ) during charging and >= 14.0V ( >=2.0V/cell) during discharging We are not responsible for any damages or losses caused by misuse (included but not limited to: improper charging/discharging, any changes of this battery pack, miss-assembling battery packs) Always pay attention when charging the battery pack. Battery shall put in a place or container with fire - proof to avoid any accident Please always check battery polarity before connection to device. Never make wrong polarity connection For safety warning please see the link here
