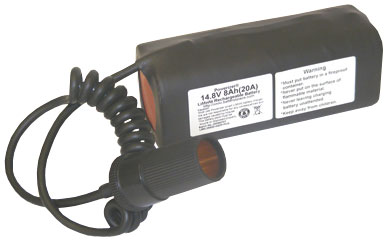

Packing	14.8V 8.0Ah LiMnNi rechargeable battery Module is made of 8 pcs LiMnNi 4000 mAh cylindrical 26650 cell in 4S2P configuration assembled (2Rx4C configuration) Wrapped by heavy duty heat shrink tube Excluded compact nylon bag (part#BAG-YX-39a), which can fit in belt or shoulder with adjustable belt
Voltage	Voltage: 14.8 V (working) 16.8 V (peak) 9.6 V ( cut-off)
Capacity	8.0 Ah (118.4 Wh)
Cycle life	80% of initial capacity at 1000 cycles
Protection	2 PCB (10A limited) installed with the battery pack and protects the battery from Overcharge (> 16.8 V) Over discharge (<9.6 V) Over drain ( >20 Amp) Short circuits
Pre-wired	Charge/Discharge terminal: 6" long 14 AWG open end wire Red = Positive Black = Negative
Charging rate	10 A Max
Max. Discharging Rate	20Amp limited by PCB
Dimensions (LxWxH)	144mm(5.7") x 56mm(2.2") x 62mm(2.5")
Weight	855 grams (1.9 Lb)
Smart Tips	For fast charging (4.2 hrs) , Please use our Smart Charger (3.0A) for 14.8V Li-ion/Polymer Rechargeable Battery Pack (Male Car Plug) If you connect two of these modules in parallel, you can build a 14.8V 16 Ah Battery pack with a 40 Amp discharge rate. ( must use correct wire gauge) Need a DIY connector ? please find one
Applications	14.8VDC device with 20Amp Max drain rate This high energy / and light weight Polymer Li-Ion battery bank has multi-functions: Run laptop: Connect the battery pack with 15-24V DC-DC converter, it can run any laptop computer with selectable output DC voltage between 15-24V. Burn time = (118.4Wh / Wattage of laptop) - 0.2 hrs Run 12V portable devices: Connect the battery pack to DC-DC 12V regulators, it can run 12V devices up to 11hours @8.6A Run a Video light 2.8 hrs for 50W Quartz Light With 2-Wing Barndoor You may calculate burn time by 118.4Wh / the wattage of video light
Warning	14.8V LiMnNi battery pack shall be cut-off at =<16.8V ( <=4.2V/cell ) during charging and >= 8.0V ( >=2.0V/cell) during discharging We are not responsible for any damages or losses caused by misuse (included but not limited to: improper charging/discharging, any changes of this battery pack, miss-assembling battery packs) Always pay attention when charging the battery pack. Battery shall put in a place or container with fire - proof to avoid any accident Please always check battery polarity before connection to device. Never make wrong polarity connection For safety warning please see the link here
