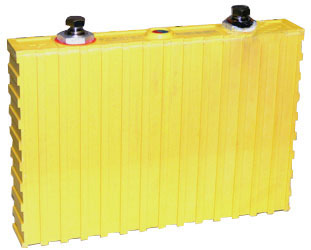

Chemistry	LiFePO4 in prismatic case
Nominal Voltage	Average 3.2 V (working) 3.65V-3.8V (peak ) 2.5 V ( cut-off low)
Capacity	200Ah (640 wh)
Charging current	C/3 rate (66.67A recommended) 1C rate (200A Max)
Discharging current	Constant discharge current: 400A (2C rate) Impulse discharge current (<10sec): 600A (3C rate)
Terminal	M12.0mm Matrix screw terminal Included 2 pcs M12.0mm Matrix screw Excluded 1 pc Copper Bar link Utilize for make a series / parrallel connection between 2 cells Bar dimension (LxWxH): 90mm(3.5") x 30mm(1.2") x 3mm(0.1")
Dimensions (LxWxH)	362(14.3") x 56mm(2.0") x 258mm(10.2") H with screw: 278mm(10.9") W with Copper Bar: 105mm(4.1")
Weight	8.0 kg (17.6 lbs)
Operation Temperature	Charging: -20'C (-4F) - 60'C(140F) Discharging: -20'C (-4F) - 60'C(140F) Self-discharging <3% monthly Temperature Durability of case =< 200'C(392F)
Cycle Performance	2000 (80DOD%) / 3000 (70DOD%)
Applications	small EV or big robot
Detail Data Sheet	Please click here to download the spcification
Smart charger	You can choose our smart charger to recharge Li-Fe-PO4 battery pack after finish build up a high voltage pack by 3.2V LFP-P200Ah module.
Cautions	This LiFePO4 3.2V module does not have PCM for protection. Do NOT discharge battery below 2.5V, and always store battery above 3.0V To form a high voltage battery pack, please choose our advanced LFP BMS to monitor and control each module for safety and long service life
Warranty	One year limited (Please download and fill the form, then fax it to 510-439-2808. Attn: BatteySpace-Tech or email to tech@batteryspace.com before use )
