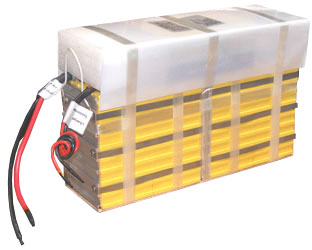

Packing	25.6V 40Ah LiFePO4 Li-Ion rechargeable battery Module is made of 8 pcs LiFePO4 Prismatic Module: 3.2V 40 Ah 8S configuration with PCM (100A limited), Stainless Steel Case , Nylon handle & Plastic Cover on the top The color of Plastic Cover will be different based on availability Acrylic Conformal Coating Technology applied for protect battery pack from Static Electric Shock Over-high pressure load Over-heat Moisture & Dust
Voltage	Voltage: 25.6 V (working) 29.3 V (peak) 20V ( cut-off)
Capacity	40Ah (1024Wh)
Cycle life	> 2000 cycles (80% of initial capacity at 1C rate)
Protection	One PCM (100A limited) installed with the battery pack and protects the battery from Overcharge (> 31.2 V) Over discharge (<16.0 V) Over drain ( >100 Amp) Short circuits Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
Energy Density	68.2Wh/kg
Prewired	Charge / Discharge terminal : 9" long 6 AWG open end wire Red = Positive Black = Negative
Charging rate	13.33A recommended, 40.0A Max
Max. Discharging Rate	100 Amp limited by PCM
Dimensions (LxWxH)	480(19.0") x 115(4.53") x 265mm(10.4")
Weight	15.0kg (33.0Lb)
Smart Tips	You may use charger below to charge the pack Smart Charger (15A) for 25.6V ( 8 cells ) LiFePO4 Battery Pack (110V only, 1.9" x 1.5" x 0.6" Standard Anderson plug). The estimated charging time is 3.8 hours Smart Charger (6 A) for 25.6V ( 8 cells) LiFePO4 Battery Pack (110V only, Standard Female Tamiya plug) to charge battery pack. The estimated charging time is 9.3 hours
Applications	E-Bike for replacing 24V Lead acid, 24V NiMH battery and 25.9V10Ah Li-Ion battery with longer cycle life with lower cost A Perfect 24.0V Battery module with 100A Max drain rate for EV, HEV application You may build battery pack for higher voltage (series connection) or higher capacity (parallel connection)
Warning	Please click Knowledge on LiFePO4 battery to learn more detail
Buttom View with Wooden Board cover
