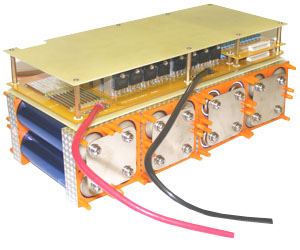

Packing	25.6V 20Ah LiFePO4 Li-Ion rechargeable battery Module is made of 16 pcs of LiFePO4 Rechargeable Cell: 38120p (M size) Cell 3.2V 10 Ah, 100A Rate (LFP-38120P) in 8S2P configuration with 16 pcs of Battery Holder: 2 x M with 4 bases , 18 pcs of 60mm x 20mm connection plate & PCM (100A limited) Acrylic Conformal Coating Technology applied for protect battery pack from Static Electric Shock Over-high pressure load Over-heat Moisture & Dust
Voltage	Voltage: 25.6 V (working) 29.3 V (peak) 20V ( cut-off)
Capacity	20Ah (512Wh)
Cycle life	> 2000 cycles (80% of initial capacity at 1C rate)
Energy Density	62.43Wh/kg
Protection	One PCM (100A limited) installed with the battery pack and protects the battery from Overcharge (> 31.2 V) Over discharge (<16.0 V) Over drain ( >100 Amp) Short circuits Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
Prewired	Charge / Discharge terminal : 9" long 6 AWG open end wire Red = Positive Black = Negative
Charging rate	5 A recommended and 50A Max..
Discharging Rate	60 Amp (Continuous discharge rate) 100 Amp ( < 30 sec Max Surge rate) limited by PCM
Dimensions (LxWxH)	330 mm(13.0") x 155mm(6.1") x 135mm(5.3")
Weight	8200 grams (18.1lb )
Smart Tips	You may use Smart Charger (6 A) for 25.6V ( 8 cells) LiFePO4 Battery Pack (110V only, Standard Female Tamiya plug) to charge battery pack. The estimated charging time is 4.7 hours
Applications	E-Bike for replacing 24V Lead acid, 24V NiMH battery and 25.9V10Ah Li-Ion battery with longer cycle life with lower cost A Perfect 24.0V Battery module with 100A Max <30 sec Surge drain rate for EV, HEV application You may build battery pack for higher voltage (series connection) or higher capacity (parallel connection)
Warning	The battery holder may crack down from a heavy load applied, Batteryspace is not responsible for any damage cause by misuse. Please click Knowledge on LiFePO4 battery to learn more detail
