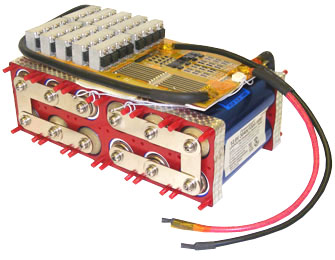

LiFePO4 38120P Battery: 12.8V 30Ah (384Wh, 100A rate ) with PCM

LiFePO4 38120P Battery: 12.8V 30Ah (384Wh, 100A rate ) with PCM


Packing
Voltage Voltage: 12.8 V (working) 15.2 V (peak) 10.0 V ( cut-off)
Capacity 30Ah (384Wh)
Cycle life > 2000 cycles (80% of initial capacity at 1C rate)
Protection
  • One Balancing PCM (100A limited) installed with the battery pack and protects the battery from
    • Overcharge (> 15.6 V)
    • Over discharge (<8.0 V)
    • Over drain ( >100 Amp)
    • Short circuits
    • Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
Energy Density
  • 76.96 Wh/kg
Prewired
  • Charge / Discharge terminal : 9" long 6 AWG open end wire
    • Red = Positive
    • Black = Negative
Charging rate 5 A recommended and 50A Max..
Discharging Rate
  • 60 Amp (Continuous discharge rate)
  • 100 Amp ( < 30 sec Max Surge rate) limited by PCM
Dimensions (LxWxH)
  • 250 mm(9.8") x 165(6.5") x 125mm(4.9")
Weight
  • 4989 grams (11.0lb )
Smart Tips
Applications
  • A Perfect 12.8V Battery module with 100A Max <30 sec Surge drain rate for EV, HEV application
    • You may build battery pack for higher voltage (series connection) or higher capacity (parallel connection)
    • Burn-time = 384Wh / device's wattage
Warning
  • The battery holder may crack down from a heavy load applied, Batteryspace is not responsible for any damage cause by misuse.
  • Please click Knowledge on LiFePO4 battery to learn more detail

Price: $529.95
