LiFePO4 14505 Battery: 12.8V 600 mAh (4x14505 4S Flat, 0.6A rate) with PCB

LiFePO4 14505 Battery: 12.8V 600 mAh (4x14505 4S Flat, 0.6A rate) with PCB

LiFePO4 14505 Battery: 12.8V 600 mAh (4x14505 4S Flat, 0.6A rate) with PCB

Packing

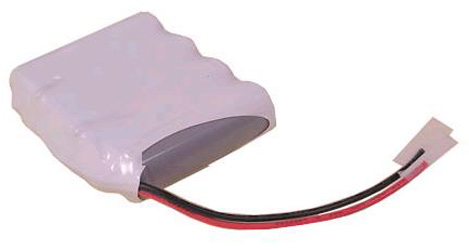

12.8 V 600mAh LiFePO4 Li-Ion rechargeable battery Module is made of 4 pcs LiFePO4 14505 Cell: 3.2V 600 mAh (Stadard AA size) in 4S Configuration (flat) connection and shrink wrapped

Voltage Voltage: 12.8 V (working) 14.4 V (peak) 10.0 V ( cut-off)

Capacity 600 mAh (7.68Wh)

Cycle Life >2000 (80% Capacity)

Protection

One PCB (7A limited) installed with the battery pack and protects the battery from

Overcharge (>15.2V)
Over discharge ( <10.0 V)
Over drain ( >7.0 Amp)
Short circuits

One 2.0 Amp polyswitch installed to limit max. discharging current and to protect wrong polarity

Prewired

6" long 24AWG wire without connector

Red = Positive
Black = Negative

Charging rate 0.6A Max

Max. Discharging Rate 0.6 Amp (1.0C rate)

Dimensions (LxWxH) 60mm(2.4") x 60mm(2.4") x 22mm(0.9")

Weight 3.4Oz (95 grams)

Smart Tips

You may choose our 0.5A smart charger for 12V Li-Fe-PO4 pack to recharge this battery pack. The estimated charging time is 3.6 hours

Applications

12VDC Device with 0.6A Max drain
Need connector for DIY? Please click here to order
Burn-time = 7.68Wh / Wattage of device.

Warning

12.8V LiFePO4 battery pack shall be cut-off at 14.4V during charging and 10.0V during discharging
Please click Knowledge on LiFePO4 battery to learn more detail

Price: $19.98
Buy Product Online | Visit Store Home
