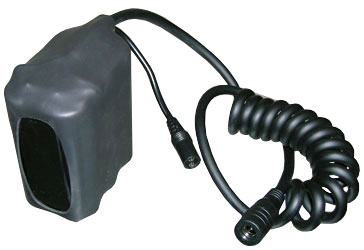

Li-ion 18650 7.4V 9.6 Ah (71wh) Battery with Trail-Tech Female plug

Li-ion 18650 7.4V 9.6 Ah (71wh) Battery with Trail-Tech Female plug (modified for 6V light) (LCH3P4S2R2WP-2P)


Packing
  • 7.4V, 9600mAh Li-Ion battery , is made of 8 pcs 2400mAh 18650 Li-Ion cylindral cells ( 4 parallel / 2 series)
  • The battery pack is wrapped by heavy duty heat shrinked tube
  • Two terminals from the battery pack
    • Charging terminal: to charging battery
    • Discharging terminal: regulate peak voltage below 8V and connect to light
Voltage Voltage: 7.2V (working) 7.9 V ( peak) 5V ( cut-off)
Capacity 9600 mAh min. (91 wh)
Protection
  • Two PCB (8A) installed with the battery pack and protects the battery from
    • Overcharge (>12.6V)
    • Overdischarge ( < 7.5 V)
    • Over drain ( > 16 Amp)
    • Short circuits
  • 9 Amp polyswitchhes installed to limit max. discharging current at 9 A and to protect wrong polority
Prewired
Max. Discharging Rate 9Amp limited by two polyswitch
Dimensions

40 (W) x 75 (H) x 80 (L) mm

Weight 13.5 Oz
Smart Tips
  • You shall choose 1A Universal Smart Li-Ion battery charger to recharge this battery pack. The estimated charging time is 12 hours
  • If you would like to use this charger in your car, you can choose our 110W DC-AC inverter, then you can charge your RC battery everywhere.
  • Please keep your old bike lighting connector. You may need to link our wire to a special connector to make your lighting work properly , in case our universal connectors can not fit your light.
  • Burning time for light is estimated as follow:
    • 10W HID light ( Lupine Endison ) 9 hours
    • 20W Halogen Light: 3.5 Hours hall choose

Applications
  • Specially designed for replacing battery of Lupine HID bike lights, and 6V NiMH battery pack for halogen light
  • Can replace most 6V NiMH or 7.2V Li-Ion battery. Please note using a 7.4V battery to light a 6V bulb might short the life span of the bulb. including,
    • Light@ Motion: conmute&Solo logic
    • Niterider: Headtrip
    • Nightpro: Elite, torch, KAMIKAZE
    • Cygolite: Rover
    • Viewpoint
    • Nightsun Team
    • Lupine Edison
  • Please note using a 7.4V battery to light a 6V bulb might short the life span of the bulb.
  • You can order our 6V bulb here
Warning
  • Li-Ion battery may be exploded if mis-using. We are not responsible for any damages or losses caused by misusing (included but not limited to: mis-charging, mis-discharging, any changes of this battery pack, mis-assembling batterypacks) .
  • Always charge battery with attention. Battery pack shall be placed on a fire-prrof place to avoid any accident
  • Please check battery polarity before plug battery into light. Never make wrong polority connection. Please check
  • For safety warning please see the link here

Price: $99.95
