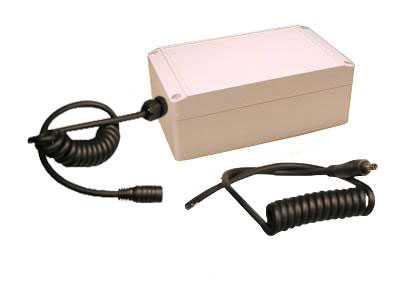

Li-Ion Box Battery: 18.5v 10.4Ah ( 192 Wh, Trail-Tech female plug) in Water& Fire Proof Enclsoure (15.6)

Li-Ion Box Battery: 18.5v 10.4Ah ( 192 Wh, Trail-Tech female plug) in Water& Fire Proof Enclsoure


Packing

Voltage

18.5V (working) 21 V ( peak) 12.5V ( cut-off)
Capacity 10.4 Ah ( 192 wh)
Protection

  • Two PCM with Equilibrium Function (10A) installed with the battery pack and protects the battery from

    • Overcharge (>21V)
    • Overdischarge ( < 12.5 V)
    • Over drain ( >20 Amp)
    • Short circuits
  • Two 7 Amp polyswitch installed to limit max. discharging current at 14A and to protect wrong polority
Prewired
Max. Discharging Rate 14 Amp limited by polyswitch ( lower rate avaiable upon request)
Dimensions 158 x 90 x 60 (mm)
Weight 2.3 lbs
Smart Tips
Applications
  • Autonomous submarine to drive a 12V DC motor
  • RC robot and RC aircraft with higher energy needs
  • Building external battery packs for Laptop computers with DC input 19-21V. Gives laptops an extra 10 hours of running time!!!
Warning
  • Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by misusing (included but not limited to: mis-charging, mis-discharging, any changes of this battery pack, mis-assembling batterypacks)
  • Never discharge the battery pack beyond Max. limit.
  • Must read before place an order. Please download fill the form and fax back to 510-439-2808. Attn: BatteySpace-Tech.
  • For safety warning please see the link here
Price: $406.50
Buy Product Online | Visit Store Home
