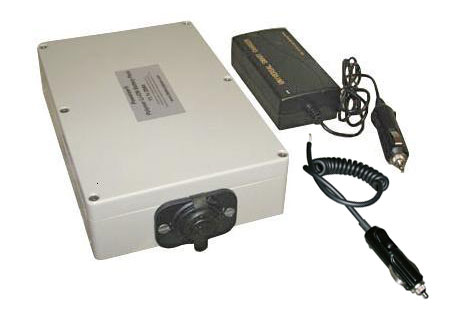

Li-Ion Box Battery: 11.1V 20Ah (222 wh, 14A rate) Li-Ion with Car Socket + Smart Charger + Male Cigarette plug for Portable Power Bank

Li-Ion Box Battery: 11.1V 20Ah (222 wh, 14A rate) Li-Ion with Car Socket + Smart Charger + Male Cigarette plug(15A rate) for Portable Power Bank

Li-Ion Box Battery: 11.1V 20Ah (222 wh, 14A rate) Li-Ion with Car Socket + Smart Charger + Male Cigarette plug for Portable Power Bank

Packing

11.1V 20Ah Polymer Li-Ion battery pack is made of 6 pcs of 10 Ah (9059156) , 10A drain rate in 3s2p connection

The battery pack is placed in ABS Fire Retardant / water-proof Enclosure (10-38) to protect battery from wet weather, drop impact and fire accident

Voltage Voltage: 11.1V (working) 12.6V ( peak) 7.5V ( cut-off)

Capacity 20 Ah min. (222 wh)

Protection

Two PCM (10A limited each) is installed with the battery pack to protect battery from

Overcharging beyond 4.25V/cell
Over-discharge below 2.85V/cell
Over drain ( >20 Amp)
Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.

Two 7 Amp polyswitch installed to limit max. discharging current at 14A and to protect wrong polarity

Prewired

Charge/ Discharge terminal

A Car light socket is installed on the pack box

Included one pcs 4' long coil cord male car lighter plug(15A limited) for connecting your device to the battery pack, please find more connector option here

Max. Discharging Rate

14Amp limited by two polyswitches. ( The maximum current drawn from Car light socket shall be 14Amp)

Must DIY by included coil cord male car connector with correct polarity

White wire = Positive
Black wire = Negative

Dimension (LxWxH) 222mm x 145mm x 55mm (8.74" x 5.71" x 2.17")

Weight 1630 g ( 3.6 lb )

Charger (Included)

Included one pcs 11.1V (1.5A) Smart Li-Ion battery charger with car lighter socket

The charging time is about 20 hours.
Picture below shown how to charge the pack by the included 1.5A charger

Included connector attached via charge/discharge terminal

Applications

Designed as rechargeable battery pack for solar panel > 15 W.
Combined with smart power inverter with DC &AC sockets, the battery pack can run most 110Vac devices, ( such as Laptop and portable TV) and 5V USB ( MP3, Video game and PDA)

Warning

Li-Ion battery may be exploded if misusing. We are not responsible for any damages or losses caused by misa-using (included but not limited to: miss-charging, miss-discharging, any changes of this battery pack, miss-assembling battery packs) .
Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident
Please check battery polarity before plug battery into light. Never make wrong polarity connection.
For safety warning please see the link here

Price: $299.98
Buy Product Online | Visit Store Home
