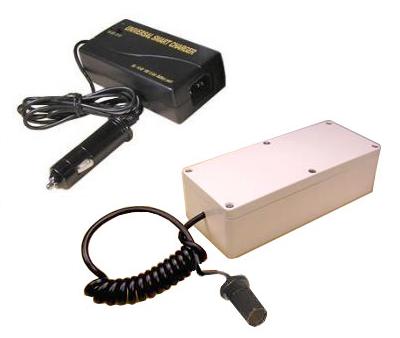

Li-Ion Box Battery: 11.1V 12.8Ah (142 wh) Li-Ion with Car Socket + Smart Charger (11.52)

Li-Ion Box Battery: 11.1V 12.8Ah (142 wh) Li-Ion with Car Socket + Smart Charger


Packing
Voltage Voltage: 11.1V (working) 12.6V ( peak) 7.5V ( cut-off)
Capacity 12.8 Ah min. (142 wh)
Protection
  • Two PCB (8A) installed with the battery pack and protects the battery from
    • Over charge ( >12.6V)
    • Over discharge ( < 7.5 V)
    • Over drain ( > 16 Amp)
    • Short circuits
  • Two 7 Amp polyswitch installed to limit max. discharging current at 14A and to protect wrong polarity
Prewired
  • 4' 16 AWG co-asix cable with Car light socket is installed in the pack
  • If you need male car lighter plug, please find one here
Max. Discharging Rate 14 Amp limited by polyswitch
Dimension (LxWxH) 194mm x 74mm x 55mm (7.64" x 3.11" x 2.17")
Weight 780 g (1 .7 lb)
Smart Charger
Smart Tips
  • You can recharge the battery pack during driving if you order DC-AC inverter
  • The battery pack can be carried by this fanny bag
Applications
  • Designed as rechargeable battery pack for solar panel > 15 W. See below to see how to connect battery pack to solar panel

  • Combined with smart power inverter with DC &AC sockets, the battery pack can run all devices at 110V AC, ( such as Laptop and portable TV) and 5V USB ( MP3, Video game and PDA) , see the picture below to see output

Warning
  • Li-Ion battery may be exploded if misusing. We are not responsible for any damages or losses caused by misusing (included but not limited to: mis-charging, mis-discharging, any changes of this battery pack, mis-assembling battery packs...) .
  • Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident
  • Please check battery polarity before plug battery into light. Never make wrong polarity connection.
  • For safety warning please see the link here
Price: $239.95
