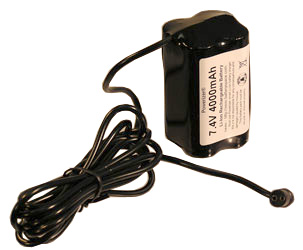

Li-Ion 18650 Battery: 7.4V 4000mAh Battery Module with two pin DC female connector (2.4)

Li-Ion 18650 Battery: 7.4V 4000mAh (29.6Wh) Battery Module with two pin DC female connector


Packing Made of 4 pcs 18650, 2000mAh Li-Ion cells, packed in 2S2P
Voltage Voltage: 7.4 V (working) 8.4 V ( peak) 5.0 V ( cut-off)
Capacity 4000 mAh
Protection
  • Two PCB (IC) (5A limited) installed with the battery pack and protects the battery from
    • Overcharge (> 8.4 V)
    • Overdischarge ( < 5.0 V)
    • Over drain ( > 5 Amp)
    • Short circuits
  • Two 2A polyswitch installed to limit max. discharging current and to protect wrong polority
Prewired 5" cable with a female universal connector
Max. Charging Rate 2 A
Max. Discharging Rate 4.2 Amp limited by polyswitch
Dimensions 1.35" (W) x 1.35" (H) x 2.5" (L)
Weight 7.0 oz
Smart Tips
Applications:
  • Perfect for super-bright bike headlight of 6 -10W. Can replace any 6V NiMH battery or 7.2V Li-Ion
    • Light@ Motion: Commutre and Solo Logic
    • Niterider: Headtrip
    • Nightpro: Elite, torch, KAMIKAZE

    • Cygolite: Rover
    • Viewpoint
    • Burning time: 6W Halegon: 5.7 hrs
    • 10W Halogen 3.5hrs
  • Please don't throw away the connector in your old device system. You may need the connector link to our battery.
  • If our connector can not fit to your device, you may remove old connector and change it to our universal connector
Advantages
  • No memory effect and longer storage life than NiMH battery
  • Totally environmental friendly. 100% recyclable
  • Light weight and higher energy density than any rechargeable battery. Perfect for all types of RC devices, especially RC-airplane.
Warning
  • This Battery is not good for > 10 W halogen light due to PCB can not accept high initial current. Not good for higher 4A drain's application
  • Li-Ion Battery may explode if charging or discharging improperly. User must have knowledge on how to charge and discharge Li-Ion battery before making Li-Ion Battery Pack.
  • For safety warning please see the click here

Price: $25.00
