Features:
- Designed as external battery pack for heavy digital camera user and Pro photographer to keep their camera flashing.
- Made by 2 Pcs High quality Sanyo/LG/Other Top Brand Korea 18650 cylindrical Li-Ion Battery with Ultra lightweight and Super-high capacity (2200 mAh)
- The battery capacity is similar to Maha PowerEx2200mAh PowerBank, but 50% lower price .
- This battery can last for more than 800 shots per charging
- 0.8"x 1.6 "x 2.8" compact size and 3.8 Oz light weight , which is stowed a small leather case with belt click for easy carrying.

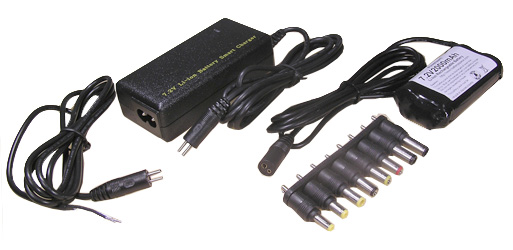

- One Li-Ion smart charger is included for safe and quicker charging. Only need 2 hrs to get battery fully charge.
- One set of detachable universal connectors with 8 plug tips are included and will fit to most of the digital cameras.
- The external battery can be use for most popular brand camera which has 6- 9V DC put jack and round plug tips, such as Nikon Coolpix 995, 880, 885, 775, Olympus E-10, E-100 and HP Photosmart C618, C912 cameras etc
- Before purchasing the battery, please check (1) If your DC input is between 6V -9V (2) If one of 8 plug's diameter listed in below can fit your camera.
|
Specifications for Battery Pack |
Specifications for Smart Charger |
|
2 pcs High quality Li-Ion cylindrical cells, 18650, 2200mAh
PCB IC inside to protect over charge and discharge
Voltage: 7.4V working and 8.4V at peak
Capacity: 2200mAh
Dimension: 0.8"H x 1.6" W x 2.8" L
Weight: 110 g (3.8 Oz)
Max. discharging rate: 5 A
Recharged Cycles: > 500 times
5" cable with a female universal connector
|
- In-put: AC 100 -240V and Out-put: DC 8.4V, 1500mA
- Cut off automatically if battery is fully charge
- In Charging --- Red LED
- Battery Full --- Green LED 4' detachable power cable
- Extra 5' cable with female connector for link to your other system if you like
- Dimension: 40 W x 15 H x 92 mm L
- 8 pcs plug tip with various diameter ( O.D.)
- 6.02 mm , 6.29 mm, 5.47 mm, 5.48 mm,
- 5.45 mm, 5.01mm, 4.75 mm, 4.0 mm

|
Operation Procedures:
-
Plug battery connector (2 pins male) to the charger's connector (2 holes female)
- Plug Charger AC power cable to wall (100 - 240V worldwide support) ---RED led on
- When battery is full, Green led on. Then disconnect battery pack from charger.
- Choose a right size plug tip, push two pins on the plug into two holes from female connector on the battery. ( Note: two pins, larger diameter one is positive )
- Push the plug into your camera. (If it can not fit in, please choose a right one)
- Put the external battery case into your belt, then you are ready to shoot.

|
