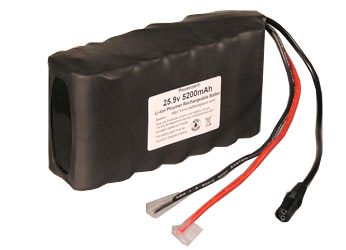

Li-Ion 18650 Battery: 25.9V 5200mah battery module with PCM (10.92)

Li-Ion 18650 Battery: 25.9V 5200mah (134.68Wh, 7.0A rate) battery module with PCM


Packing
  • 25.9V 5.2Ah Li-Ion Battery pack is made of 14 pcs High quality Sanyo/LG/Other Top Brand Korea 2600mAh Li-Ion 18650 Cell with PCM(10A limited), and packed 7 in series and two 25.9V 2.6Ah module in parallel
  • Wrapped by heavy-duty Heat shrink tube
Voltage 25.9 v (working) 29.4 V ( peak) 18 V ( cut-off)
Capacity 5.2 Ah
Protection
  • One PCM(10A limited) is installed in the battery pack to balance charging and protect battery module from
    • Overcharge (> 29.6 V)
    • Over-discharge ( < 16.1V)
    • Over drain ( > 10 Amp)
    • Short circuits
    • Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
  • One 7 Amp polyswitch installed to limit max. discharging current and to protect wrong polarity
Pre-wired
Max. Discharging Rate 7 Amp limited by one polyswitch.
Dimensions (LxWxH) 5.3"(135mm) L x 1.9"(48mm)W x 2.9"(74mm)H
Weight 1.6 lb (7.25 grams)
Smart Tips
  • You may use 1.2A Smart Li-ion battery charger to fast charge the pack via only charging terminal with 6 hrs charge time.
    • Must plug the charger and the connector adaptor with correct polarity.
    • Batteryspace.com will not be responsible for any damage caused by misuse.
  • Optional for Fire Retardant Bag: 295mmx230mmx75mm. Please click here to buy separately
  • If you connect two of these modules in parallel, you can build a 25.9V 10.4 Ah Battery pack with a 8.4 Amp discharge rate.
  • You can connect this battery to DC-DC regulators to provide 3V - 24V output
  • Need a connector ? please find one here
Applications
  • Replace 24 V NiMH battery pack with much lightweight
  • RC robot and RC aircraft with higher energy needs
Warning
  • Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by misusing (included but not limited to: misuse, any changes of this battery pack, mis-assembling batterypacks)
  • Please never discharge the battery pack beyond its Max. rating
  • Must read before place an order. Please download fill the form and fax back to 510-439-2808. Attn: BatteySpace-Tech.
  • For safety warning please see the link here

Price: $271.50
