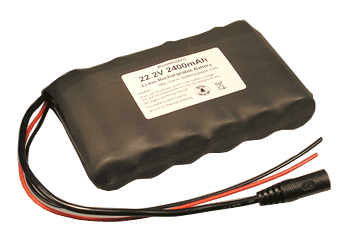

Packing	22.2V 2.4Ah Li-Ion Battery pack is made of 6 pcs high quality 2400mAh Li-Ion 18650 Cell with PCB, and packed 6 in series Wrapped by heavy-duty Heat shrink tube
Voltage	22.2 v (working) 25.2 V ( peak) 15 V ( cut-off)
Capacity	2.4 Ah ( 53wh)
Protection	One PCB installed with the battery pack Over-charge (> 25.2 V) Over-discharge ( < 15 V) Over drain ( > 8 Amp) Short circuits One 2.0 Amp polyswitch installed to limit max. discharging current and to protect wrong polority 55o thermostat installed in charging terminals to protect battery from over-discharged
Pre-wired	One charging terminals: 6" wire of 20 AWG with two holes universal connector One discharging terminal: 6" wire of 20 AWG wire without connector
Max. Discharging Rate	2.0 Amp limited by polyswitch.
Dimensions	5 " L x 1.3" W x 1.9" H
Weight	11 oz
Smart Tips	You shall choose our 1.5A Smart Li-Ion battery charger to recharge this battery pack. The estimated charging time is 5 hours If you connect two of these modules in parallel, you can build a 25.9V 10.4 Ah Battery pack with a 8.4 Amp discharge rate. You can connect this battery to DC-DC regulators to provide 3V - 24V out pout for as a Need a connector ? please find one here
Applications	Replace 12 V NiMH battery pack with much light weight RC robot and RC aircraft with higher energy needs
Warning	Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by misusing (included but not limited to: misuse, any changes of this battery pack, misassembling battery packs...) Please never discharge the battery pack beyond its max. rating Must read before place an order. Please download fill the form and fax back to 510-439-2808. Attn: BatteySpace-Tech. For safety warning please see the link here
