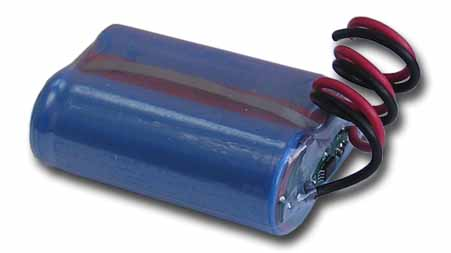

Li-Ion 18500 7.4 V 1400mah battery module with Protection IC (0.84)

Li-Ion 18500 7.4 V 1400mah (10.36Wh) battery module with Protection IC (LC18500S2R1WR)


  • 7.4V 1400mAh Li-Ion battery module is made of 2pcs high quality cylindrical 18500 rechargeable cells with PCB (7A limited) and 2.0A poly-switch for full protection
  • Capacity: 1400mah
  • Voltage: 7.2V (Peak at 8.4 V)
  • Dimension: 2" L x 1.5" W x 0.75" H.
  • The battery module is wrap by transparent PVC shrink and with 22 AWG wire.
  • Weight: 2.5 oz
  • Max. charge current: 1C (1.4A)
  • Max. discharge current: 2.0A limited by 2.0A poly-switch
  • Cut off voltage: 4.8 V
  • No memory effect and longer storage life than NiMH battery
  • Totally environmental friendly. 100% recyclable
  • Light weight and higher energy density than any rechargeable battery.
  • Using the module you can make 7.4V, 2.8 Ah or high capacity Li-Ion battery pack quickly by parallel connecting two or three PCB ready battery module. Please don't make parallel connection with more than three modules to avoid uneven charge.
  • Installed IC chip will prevent battery pack from over charge and over discharge. Helps protect battery chemistry integrity and prolongs battery life.
  • Perfect for building up battery pack for RC air, car, and robot where requires compact size and lighter weight.
  • You may choose our Universal Smart Li-Ion battery charger(0.5A,UL listed) (4.2 hrs charging time) to recharge this battery module.
Warning
  • Li-Ion Battery may explode if charging or discharging improperly. User must have knowledge on how to charge and discharge Li-Ion battery before making Li-Ion Battery Pack.
  • For safety warning please see the link here

Price: $14.95
