Li-Ion 14650 7.4 V 940mah (6.95Wh, 2A rate) battery module with Protection IC&Polyswitch

Li-Ion 14650 7.4 V 940mah (6.95Wh, 2A rate) battery module with Protection IC&Polyswitch (0.564)

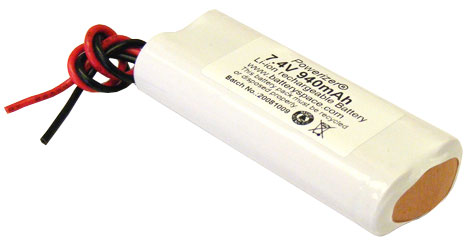

7.4V 940mAh Li-Ion battery module is made of 2pcs Sanyo cylindrical 14650 rechargeable cells with PCB(5A limited) & poly-switch(2A limited) for full protection
Charge/Discharge terminal: 4" long 22 AWG open wire end
Capacity: 940mah
Voltage: 7.4V (Peak at 8.4 V)
Dimension (LxWxH):70mm(2.8") x 30mm(1.2") x 18mm(0.7")
The battery module is wrap by transparent PVC shrink
Weight: 30grams (1.1Oz)
Max. charge current: 1C (940mA)
Max. discharge current: 2A limited by Polyswitch
You may choose our Universal Smart Li-Ion battery charger(0.5A,UL listed) (2.82 hrs charging time) to recharge this battery module.

Warning

Li-Ion Battery may explode if charging or discharging improperly. User must have knowledge on how to charge and discharge Li-Ion battery before making Li-Ion Battery Pack.
For safety warning please see the link here

Price: $14.99
Buy Product Online | Visit Store Home
