Li-Ion 14500 Battery: 7.4 V 750mah (5.55Wh) with PCB

Li-Ion 14500 Battery: 7.4 V 750mah (5.55Wh) with PCB (0.45)

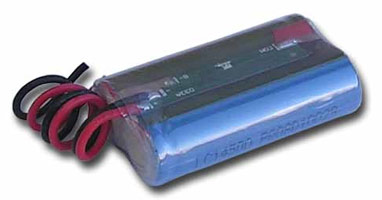

7.4V 750mAh Li-Ion battery module is made of 2pcs high quality cylindrical 14500 rechargeable cells with PCB (5A limited) and 2.0A Polyswitch for full protection
The battery module is wrap by transparent PVC shrink with 4" long 22AWG open wire

Capacity: 750mah
Voltage: 7.2V (Peak at 8.4V)
Dimension: 2" L x 1.1" W x 0.55" H. (same size as 2x AA NiMH pack)
Weight: 1.6 oz
Max. charge current: 1C (750 mA)
Max. discharge current: 2.0A limited by 2.0A Polyswitch
Cut off voltage: 4.8 V
No memory effect and longer storage life than NiMH battery
Totally environmental friendly. 100% recyclable
Light weight and higher energy density than any rechargeable battery.
Using the module you can make 7.4V, 1.5 Ah or 4.2 Ah high capacity Li-Ion battery pack quickly by parallel connecting two or three PCB ready battery module. Please don't make parallel connection with more than three modules to avoid uneven charge.
Installed IC chip will prevent the battery pack from over charge and over discharge. It helps protect battery chemistry integrity and prolongs battery life.
Installed polyswitch will cut off power if battery discharging current more than 2.0A. Please don't use this pack for any application > 2.0 A discharging rate.
Perfect for building up battery pack for RC air, car, and robot which requires compact size and lighter weight.
You may choose our Universal Smart Li-Ion battery charger(0.5A,UL listed) to recharge this battery module.
Li-Ion Battery may explode if charging or discharging improperly. We are NOT responsible for any damage that is caused by the misuse of the Li-Ion Battery.
Please download cylindrical 14500 rechargeable li-ion battery specification.

Must read our battery knowledge:

Price: $12.95
