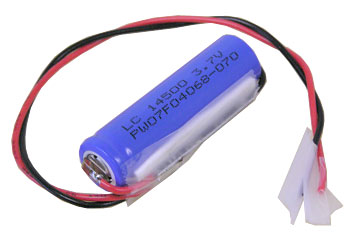

Li-Ion 14500 3.7V 750mAh battery prewired with PCB 3A Limit (IC) (0.225)

Li-Ion 14500 3.7V 750mAh battery prewired with PCB 3A Limit (IC) (LC14500WR)


Packing
Voltage Voltage: 3.6V (working) 4.2V ( peak) 2.5V ( cut-off)
Capacity 750 mAh, 0.75 Ah, 2.775 Wh
Protection
  • One PCB (3.5A) installed with the battery pack and protects the battery from
    • Overcharge (>4.2V)
    • Overdischarge ( <2.5 V)
    • Over drain ( > 3.5 Amp)
    • Short circuits
  • No polyswitches
Prewired

4"length 22 AWG Prewired.

Max. Discharging Rate 3.5 Amp limited by PCB
Dimensions 15 mm ( Dia) x 51 mm (height)
Weight 22.6 g ( 0.8Oz )
Smart Tips
  • You may choose our Smart Charger (0.5A,UL listed) for 3.7 V Li-Ion battery Pack to recharge this battery pack. Must charge the battery pack with correct polarity.
  • The estimated charging time is 2.25 hours .
  • You may connect two 3.6v 600 mah pack in either series or parallel connection for making a higher voltage and higher capacity pack.
Applications
  • Perfect for memory buck-up, external battery bank for MP3
  • Building battery pack for higher voltage or higher capacity without extra PCB.
  • Perfect DIY for your own battery pack by using our connector at connector section.
Warning
  • Li-Ion battery may be exploded if misusing. We are not responsible for any damages or losses caused by misusing (included but not limited to: improperly charging/discharging, any changes of this battery pack, misassembling battery packs...) .
  • Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident
  • Please check battery polarity before connect to device
  • For safety warning please see the link here
Price: $9.95
