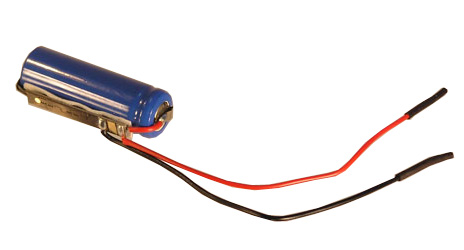

Li-Ion 14430 3.7V 600mAh battery with PCB (IC) (0.18)

Li-Ion 14430 3.7V 600mAh battery with PCB (IC) (LC14430WR)


Packing
Voltage Voltage: 3.7V (working) 4.2V ( peak) 2.5V ( cut-off)
Capacity 600 mAh, 2.22 Wh
Protection
  • One PCB (3.5A) installed with the battery pack and protects the battery from
    • Overcharge (>4.2V)
    • Overdischarge ( <2.5 V)
    • Over drain ( > 8 Amp)
    • Short circuits
  • No poly switch.
Prewired

4" 22 AWG open end wire

Max. Discharging Rate 1C ( 0.6 Amp)
Dimensions (HxD) 44 mm x 15mm
Weight 19.8 g ( 0.7Oz )
Smart Tips
  • You may choose our Smart Li-Ion Charger(150mA) to recharge this battery pack. Must charge the battery pack with correct polarity. The estimated charging time is 6 hours.
  • You may connect two 3.7v 600 mAh packs in either series or parallel connection for making a higher voltage or higher capacity pack.
Applications
  • Perfect for memory back-up, external battery bank for MP3
  • Building battery pack for higher voltage or higher capacity without extra PCB
Warning
  • Li-Ion battery may exploded if misusing. We are not responsible for any damages or losses caused by misusing (included but not limited to: improperly charging/discharging, any changes of this battery pack, mis-assembling battery packs).
  • Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident .
  • Please don't use the battery modules to make series connection or parallel connection with more than 2 packs, otherwise battery service life may be reduced.
  • For safety warning please see the link here
Price: $9.95
