LFP 3.2V Slave Module for BMS-LF24

LFP 3.2V Slave Module for BMS-LF24


This Slave Module is designed for controlling single 3.2V Li-Fe-PO cell or group batteries in a BMS-LF24 Master Module. It must be used together with BMS-LF24

Slave Module Features and Specifications:

  • Size (LxWxH): 2.59x1.50x0.45"
  • Weight: 1.5oz (42g) with 5.0' cable and temperature sensor
  • Nominal Bolt Spacing: 2.36"
  • Bolt Slot Width: 0.25"
  • Voltage Resolution: 1mV
  • Voltage Accuracy: +/-5mV typ.
  • Voltage measurement range: 1.9-5V (Lithium Iron Phosphate version)
  • Cell temperature measurement accurate to 1 degree C typical
  • Cell temperature measured at bolt terminals or with optional temperature probe
  • Balancing: Dissipative

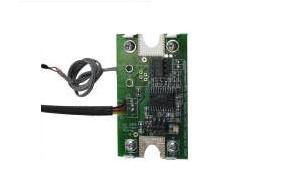

  • Supplied as PCB with cable
  • Bolts directly to smaller Thunder Sky/International Battery LCP/LFP cells
  • Mounting holes and solder pads for integration with 18650, 26650 and other pack configurations
  • High-precision cell voltage measurement, 1mV resolution
  • +/-5mV typical accuracy, +/-2mV typical accuracy after optional calibration
  • 300uA typical current draw
  • Innovative cell balancing scheme is efficient yet tolerant of capacity mismatch
  • 3 Hz sampling rate
  • Conformal coating available
  • Includes on-the-fly cell balancing when used with BMS-LF24 at related product below
  • Shunts at programmed maximum voltage in disconnected mode
  • Visual indication of cell (over/under voltage/temperature)
  • You need to order at least two Cell Modules.
  • Please click picture below to see how to install the controller to 3.2V Li-Fe-PO cell or pack

Note: This slave module does get "hot" when performing balancing function. Please locate this where heat won't damage the battery!

Price: $50.95
