Features:

• Microprocessor controlled
• Charge / Discharge the 1.2V-18V NiMH/NiCD battery pack
  • Delta-peak sensitivity: Automatic termination program based on principle of the Delta-peak voltage detection.
    • For NiCd pack; Detect Minus delta V >= 12 mV/cell
    • For NiMH pack For NiCd pack; Detect Minus delta V >= 7 mV/cell
  • Automatic Charging current limit: Limit the charging current when charging NiMH/NiCd battery
    • 0.5C recommend charge rate for NiMH/NiCd pack
  • Capacity limit: Limit excessive capacity automatically by setting the maximum value.
  • Processing time limit (Safe timer Setting): Limit the process time to avoid any possible defect
    • Safe timer calculation = (Capacity mAh rate / charging current A rate) / 11.9
  • Charge terminal:two female 4.0mm female Banana plug (Black = Negative, Red = Positive)

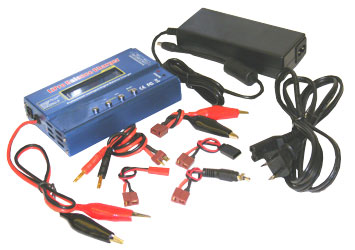

    • Included one 1' long 18AWG Connector Adaptor: from 4.0mm Male Banana plug to Standard Dean Male plug
    • Included one 3" long 22AWG Connector Adaptor: from Standard Dean Female plug to alligator Clip
    • Included one 4" long 22AWG Connector Adaptor: from Standard Dean Female plug to Male Hi-Tec plug
    • Included one 4" long 22AWG Connector Adaptor: from Standard Dean Female plug to Male BEC plug
    • Included one 4" long 22AWG Connector Adaptor: from Standard Dean Female plug to 3.0mm Male DC plug
  • Note: Excluded The temperature sensor connector. Please make sure the pack have a thermostat installed
• Charge / Discharge the 7.4V-22.2V Li-Ion/Li-Ion Polymer, 6.4V-19.2V LiFePO4 pack Battery pack without PCB
  • Balance each cell voltage is or less than 30mV after fully charged
  • Balance individual cell during discharging
    • Automatically Shut off after detect the voltage of abnormal cell indicated by ERROR message
  • Charge terminal: 5 JST male sockets installed in the charger for recharging from 2S to 6S Li-Ion/Li-Ion Polymer/LiFePO4 pack separately
    • 3 pins male JST socket for charging 2 cells (2S) pack (7.4V pack Li-Ion pack / 6.4V LiFePO4 pack)
    • 4 pins female JST socket for charging 3 cells (3S) pack (11.1V pack Li-Ion pack / 9.6V LiFePO4 pack)
    • 5 pins male JST socket for charging 4 cells (4S) pack (14.8V pack Li-Ion pack / 12.8V LiFePO4 pack)
    • 6 pins male JST socket for charging 5 cells (5S) pack (18.5V pack Li-Ion pack / 16.0V LiFePO4 pack)
    • 7 pins male JST socket for charging 6 cells (7S) pack (22.2V pack Li-Ion pack / 19.2V LiFePO4 pack)
  • Note: In order to use the smart balance charger, battery pack must be used with the charging terminal from individual cells as sample shown below:
    • For 7.4V(2S) pack's charging terminal, please click here to order 3 pin Female JST connector seperately.
    • For 11.1V(3S) pack's charging terminal, please click here to order 4 pin Female JST connector seperately.
• Charge / Discharge the SLA Battery pack
• Cyclic charge/discharging: 1 to 5 and continuous process of charge --> discharge / discharge --> charge for battery refreshing.
• Data storage (Store up to 5 packs in memory)
• Input power monitoring

Speicification

• Input Voltage: 11~18vDC
  • Included 1 pcs AC to DC adaptor (Cover from 100-240VAC 50/60Hz to 15VDC 5A)
    • Need a balance charger/discharger without AC to DC adaptor? Please click here to buy sperately.
  • Need car plug adaptor for charge in car? Please click here to order seperately
  • Input terminal:5.5mmx2.5mm Barrel female plug or via attached alligator plug
  • Circuit power: Max Charge: 50W / Max Discharge: 5W
• Charge Current Range: 0.1~5.0A
• Discharge current range: 0.1~1.0A
• Dimension(LxWxH): 137mm(5.4")x87mm(3.4")x32mm(1.2")
• Weight: 10.0Oz (283grams)
• Please click here to download the user manual
