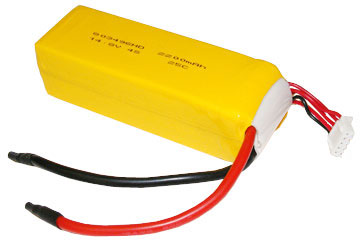

High Power Polymer Li-Ion Pack: 14.8v 2200mAh (32.56Wh, 40A rate) W/O PCB for RC Air plane
| Packing |
|
| Voltage |
14.8 v (working) 16.8V ( peak) |
| Capacity |
2200 mAh (32.56 wh) |
| Datasheet |
 Please download specification of Li-ion polymer 3.7v 2200 mah |
| Prewired |
- Charge terminal:
- 1.5" long 5 pin Female JST plug
- Discharge terminal:
- 4" long 12AWG wire without connector. You may buy connector for DIY
- Black wire = Negative polarity
- Red wire = Positive polarity.
|
| Max. Discharging Rate |
- 40A limited by 12AWG wire
- Need discharge rate up to 55A based on cell level's Max drain rate, Must DIY discharge terminal to 10AWG wire
|
| Dimensions (LxWxH) |
107mm(4.2") x 35mm(1.4") x 30mm(1.2") |
| Weight |
232g (8.2oz) |
| Smart Tips |
- In order to keep the 14.8v 2200 mAh polymer li-ion pack balance while charging, Must use our charger below
Perfect for RC-Device, RC robot and other high drain DC device up to 40A |
| Applications |
- Superior Battery Power and Battery Strength makes your RC car or Aircraft a true champion
|
| Warning |
- Li-Ion Batteries may explode if charged or discharged improperly.
- The end user must have the technical knowledge necessary to charge and discharge Li-Ion batteries before making Li-Ion Battery Packs
- There is no PCB in discharging terminal. You must cut-off power before battery voltage drop to 2.5V /cell. Never discharge battery to zero voltage which will damage battery immediately.
- Always charge battery after use and for storage
- Please read more safety warning about Li-ion battery
|
|
Price: $74.50
Buy Product Online | Visit Store Home
|
|
|
|
|
|
|
