High Power Polymer Li-Ion Module for RC devices: 14.8v 3000 mAh (44.4Wh, 30A rate) with PCM + 1.5A Smart Charger (3.6)

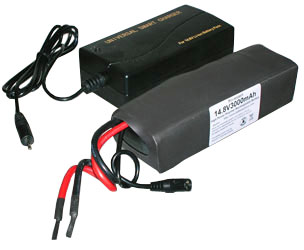

High Power Polymer Li-Ion Module for RC devices: 14.8v 3000 mAh (44.4Wh, 30A rate) with PCM + 1.5A Smart Charger


Packing
  • 14.8 V 3 Ah pack is made by 4 pcs of 3.7V 3000mAh High Power Polymer Li-Ion(6045135U)
  • Wrapped by heavy-duty Heat shrink tube
  • One PCM with balance function is installed with the battery pack to protect battery from
    • Overcharging beyond 4.25V/cell
    • Overdischarging below 2.85V/cell
    • Overdrain beyond 30 A
    • Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
  • Need additional battery pack? Please click here to order.
  • Optional for 1 pc A Fire Retardant Bag: 295mmx230mmx75mm --- Reduce the chance of damage if caught fire
    • This Fire Retardant Bag (Li-Ion Safer Bag) is intended to reduce the chance of damage in the event of catching fire.
    • Must locate & seal the battery pack in the bag while charging / leaving without any attention

Voltage 14.8 v (working) 16.8 V ( peak) 11 V ( cut-off)
Capacity 3000 mAh ( 44.4 wh)
Prewired
Max. Discharging Rate 30 Amp limited by wire gauge ( never discharge beyond 40 amp)
Dimensions (LxWxH) 148mm(5.8") x 47mm(1.9") x 38mm(1.5")
Weight 409grams (0.9 Lb)
Smart Tips
  • Included 1.5A Smart Li-Ion battery charger to recharge this battery pack. The estimated charging time is 3 hours
  • If you connect two of these modules in parallel, you can build a 14.8V 8 Ah Battery pack with a 60 Amp discharge rate.
  • Need a connector ? please find one here
  • Burntime = 44.4Wh / Wattage of device
  • Need High Power Polymer Li-Ion Module: 14.8v 50 Ah (740 Wh, 60A rate) with PCM? Please click here to order
How to charge the pack by included 1.5A Charger

Applications
  • Autonomous submarine to drive a 12V DC motor with faster speed
  • RC device: RC car/RC air and Robot with lighter weight
  • Please click here to see the Comparison Poly-Li pack vs NiMH / SLA to know more the advantages
Warning
  • Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by using the battery pack
  • Please never discharge the battery pack beyond its Max. rating
  • Must read here before place an order. Please download fill the form and fax back to 510-439-2808. Attn: BatteySpace-Tech. We reserve right not to sell the battery to any one if we feel they cannot handle Li-Ion battery safely
  • For safety warning please see the link here
  • Please allow us to delivery the battery pack in 2-3 weeks after receipt payment because it need to be tested before shipping
Warranty
  • Limited Warranty: Repair or exchange only within 30 days.
Price: $139.95
