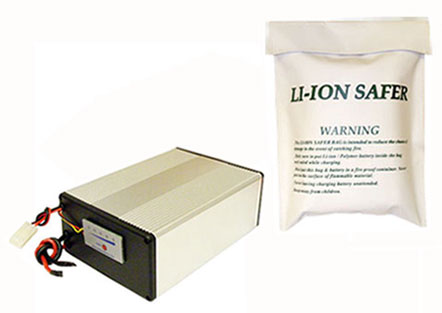

High Power Polymer Li-Ion Box Battery: 25.9V 10Ah (259 Wh, 40A rate) with Fuel Gauge + A Fire Retardant Bag

High Power Polymer Li-Ion Box Battery: 25.9V 10Ah (259 Wh, 40A rate) with fuel gauge + A Fire Retardant Bag (21)

High Power Polymer Li-Ion Box Battery: 25.9V 10Ah (259 Wh, 40A rate) with Fuel Gauge + A Fire Retardant Bag

Packing

25.9 V 10 Ah pack is made by 7 pcs High power Polymer Li-Ion cell of 3.7V 10000mAh batteries with 40Amp drain capability
Battery pack is installed in Water Proof / Fire Retardant Aluminium Enclosure: 125 x68x180 (mm) (BX-AC-120062-165)
Fuel Gauge for PCB of 25.9v Li-Ion Battery Pack (7 cells pack) is installed on surface of battery pack

Touch the switch on the display , you can monitor the energy level of battery pack

Included 1 pc A Fire Retardant Bag: 295mmx230mmx75mm --- Reduce the chance of damage if caught fire

This Fire Retardant Bag (Li-Ion Safer Bag) is intended to reduce the chance of damage in the event of catching fire.

Must locate & seal the battery pack in the bag while charging / leaving without any attention

Voltage 25.9 v (working) 29.4 V ( peak) 17.5V ( cut-off)

Capacity 10000 mAh ( 259 wh)

Prewired

One PCM with balance function is installed in the battery pack to balance charging and protect battery module from

Overcharge beyond 29.4V
Overdischarge below 19.6V
over drained beyond 40A
Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.

Charge terminal: 4"long 20 AWG with standard Male Tamiya plug.
Discharging terminal: 6" 12 AWG open end wire. Need connector for DIY? Please click here to order.

Max. Discharging Rate 40 Amp limited by PCM

Dimensions
186mm(7.3") x 125mm(4.9") x 67mm(2.6")

Weight 4.9 lb (2,200 grams)

Smart Tips

Please use either 25.9V Li-Ion smart charger below.

You may use 3.0A Smart Li-ion battery charger with 5.0 hrs charge time.
You may use Smart Charger (2.8A, CE listed, UL approved) for 25.9V Li-ion/Polymer Rechargeable Battery Pack with 5.3 hrs charge time.

Must plug the charger to the battery pack with correct polarity.
Warning: Wrong polarity will damage the charger, and Batteryspace are not responsible for the damage or losses caused by misusing
If you connect two of these modules in parallel, you can build a 25.9V 20 Ah Battery pack with a 80 Amp discharge rate with suitable wiring.

Must charge each module seperately, please don't combine charge at a time.

Need a connector ? please find one here

Applications

Autonomous submarine to drive a 24V DC motor
Replace 24V NiMH battery pack for e-bike
Wheel Chair
Please click here to see the Comparison Poly-Li pack vs NiMH / SLA to know more the advantages

Warning

Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by using batterypacks.
Please never discharge the battery pack beyond its Max. rating
Must read before place an order. Please download fill the form . We reserve the right to not sell the battery to any one if we feel they cannot handle Li-Ion battery safely
For safety warning please see the link here
Please allow us to deliver the battery pack in 2-3 weeks after receipt payment because it need to be tested before shipping

Warranty

Limited Warranty: Repair or exchange only within 30 days.

Price: $424.50
