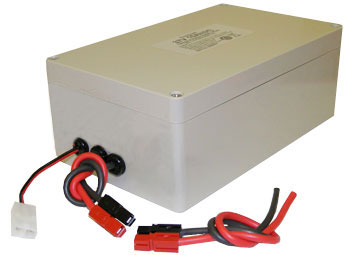

High Power Polymer Li-Ion Box Battery with fuel guage: 14.8V 20Ah ( 296 Wh, 30A rate, Anderson plug) in Plastic Enclosure (24)

High Power Polymer Li-Ion Box Battery: 14.8V 20Ah ( 296 Wh, 30A rate, Anderson plug) in Plastic Enclosure with fuel guage


Packing

Voltage 14.8 v (working) 16.8 V ( peak)
Capacity 20 Ah (296 wh)
Cycle life >300
Prewired
  • One PCM with balance function is installed with the battery pack to protect battery from
    • Over-charging beyond 4.25V/cell
    • Over-discharging below 2.75V/cell
    • Over-drain beyond 30 A
    • Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
  • Charge terminal: 4"long 20 AWG with standard Male Tamiya plug.
  • Discharge terminal: 6" long 12AWG Standard Anderson Connector
  • Included 1 pcs 8" long 12AWG Standard Anderson Connector for connecting to your device as picture shown below.
    • Red = Positive
    • Black = Negative

Max. Discharging Rate 30 Amp limited by PCM

Dimensions (LxWxH)
  • 210mm (8.3") x 120mm (4.8") x 75mm (3.0")
Weight 5.7Lb (2585 grams)
Smart Tips
Applications
Warning
  • Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by misusing
  • Please never discharge the battery pack beyond its Max. rating
  • Must read before place an order. Please download fill the form and fax back to 510-439-2808. Attn: BatteySpace-Tech.
  • For safety warning please see the link here
Warranty
  • Limited Warranty: Repair or exchange only within 30 days.

Price: $497.95
