High Power Polymer Li-Ion Battery: 37V 10Ah (370Wh) Battery with 3.0A smart charger, A Fire Retardant Bag & bag for ebike 40A Drain Rate

High Power Polymer Li-Ion Battery: 37V 10Ah ( 370 Wh) 40A Drain Rate battery with 3.0A smart charger, A Fire Retardant Bag & bag for ebike (30)

High Power Polymer Li-Ion Battery: 37V 10Ah (370Wh) Battery with 3.0A smart charger, A Fire Retardant Bag & bag for ebike 40A Drain Rate

Packing

37 V 10Ah pack is made by 10 pcs high Power Polymer Li-Ion cell of 3.7V 10000mAh batteries
The state art of PCM is installed in the pack to protect battery from over-charged, over-discharged and over-drained
Wrapped by heavy-duty Heat shrink tube

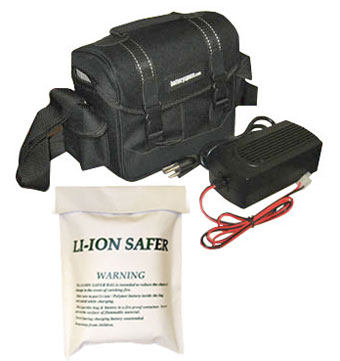

Included one 3.0A 37V Smart Li-Ion battery charger to recharge this battery pack. The estimated charging time is about 5 hours.

Warning: Please wait 30 minutes after charged to allow PCM to balance the cells to achieve the best performance

Included one Quality Multi Departments Bag 5.5x4.5x7.5"

Included 1 pc A Fire Retardant Bag: 295mmx230mmx75mm --- Reduce the chance of damage if caught fire

This Fire Retardant Bag (Li-Ion Safer Bag) is intended to reduce the chance of damage in the event of catching fire.

Must locate & seal the battery pack in the bag while charging / leaving without any attention

How to charge the pack by included 3.0A charger.

Voltage 37 v (working) 42 V ( peak)

Capacity 10 Ah (370 wh)

Cycle life >300

Prewired

One PCM with balance function installed in the battery pack to balance charging and protect battery module from

Over discharged beyond 42V
Over discharged below 28V
Over drained beyond 40A
Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.

Charging terminal: 6" 21 AWG with standard Male Tamiya plug.
Discharging terminal: 6" 12 AWG open end wire. You may choose a connector in our store ( click to link)

Max. Discharging Rate 40 Amp Limited by PCM

Dimensions (LxWxH) 168mm (6.6") x 127mm (5") x 63.5mm (2.5")

Weight 2314 gram ( 5.1 Lb) --- 60 % less weight than NiMH battery pack of 36V 10Ah

Smart Tips

If you connect two of these modules in parallel, you may build a 37 V 20 Ah Battery pack with a 80 Amp discharge rate with suitable wiring
Strongly suggest you put the battery pack into a water / fire resistant box for safety use

Applications

Replace 36V NiMH battery pack with much light weight for e-bike
RC robot and RC aircraft which need high current drain
Please click here to see the Comparison Poly-Li pack vs NiMH / SLA to the advantages

Warning

Please note we are not responsible for any damages or losses caused by misusing
Please never discharge the battery pack beyond its Max. rating
Must read before place an order. Please download fill the form and fax back to 510-439-2808. Attn: BatteySpace-Tech.
For safety warning please see the link here

Video clip file. (RealPlayer)
Please see our real time testing when attached the pack to E-bike ( 36V 600W conversion kit)

Please click here to download the Video Clip file1 (37V 8Ah Polymer Li-Ion pack installed with e-bike )

Please click here to download the Video Clip file2 (using a watt-up to monitor drain current during riding at 30A )

User Manual

Download user manual.
