The conversion kit combines the state of art E-bike technology: direct drive hi-torque hub Motor combine with our high power 37V 10Ah Li-Ion technology to change almost every bicycle into a personal electric transportation vehicle. Save energy, protect environment and save you money with a lot of fun. Now, you can create a lighter weight, higher power and less expensive electric bicycle.

NO INTERNATIONAL order please -- Due to the high cost of shipping cost ( heavy ) to outside of United State, it is too costly for us to ship back and forth for customer support.

Features and Standard Package:

• One Electric Bike Conversion Kit: 36V 600W Brushless Hub Motor with 26"Rim - Change a bike into Hyber E-bike
  • High power Brushless hub motor that allows up to 25 MPH top speed
    • Note: Brushless Hub motor offer several advantages over brushed Hub motor such as higher efficiency and reliability, noise reduced, longer lifetime (no brush erosion)

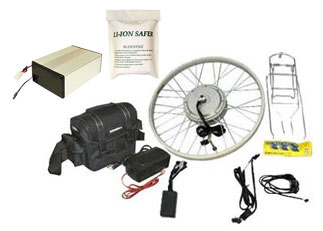

  • Complete conversion kit included:
    • 600W Hub Motor mounted in 26" rim wheel.
    • Please click here to view the dimension of the fork that must fit a 26" rim
    • Prewired thumb throttle with LED battery full -empty indicator
    • Prewired controller unit with 35 Amp current limit
    • Prewired key switch (for security)
    • Bike rack
      • Dimension (LxW): 300mm (11.8") x 135mm (5.3")
    • Easy to install within 30 minutes
    • Please click here to view the installation manual
• One Hi-Power Polymer Li-Ion Box Battery with fuel gauge: 37V 10Ah ( 370 Wh, 40A rate, Ebike terminal) in Water-proof / Fire Retardant Aluminium Enclosure
  • Made by 10 pcs Polymer Li-Ion cell of 3.7V 10000mAh batteries
  • The state art of PCM is installed the pack to protect battery from over-charged, over-discharged and over-drained
  • Battery pack is installed in Water Proof / Fire Retardant Aluminium Enclosure: 125 x68x180 (mm) (BX-AC-120062-165)
  • Charging terminal: 4" long 20 AWG with standard Male Tamiya plug.
  • Discharging terminal: Discharging terminal:7" long 12 AWG wire with standard Ebike connector which fits with BL-600 e-bike kit
    • Red (Large female Pin) = Positive
    • Black (Small female Pin) = Negative
  • Dimensions (LxWxH): 186mm(7.3") x 125mm(4.9") x 67mm(2.6")
  • Weight: 5.9 Lb (2694 grams)
• One Quality Multi Departments Bag 5.5x4.5x7.5" where 37V 10Ah Li-Ion battery in Aluminum box can be put in

• One 3.0A 37V Smart Li-Ion battery charger (5 hrs charging time)

Important Note:

• Our hub motor is not recommend for bike with front shock forks or bike with front aluminum fork. Please click here to view the dimension of the fork requirement that must fit a 26" rim. Shock fork can flex too much and aluminum fork is generally not strong enough to handle the hub motor torque - breakage can occur
• Speed controller unit has a build in 35Amp (+/-5amp) current regulator to protect battery and motor. When current is beyond the limit, the controller will cut-off power. You must use pedal to keep your bike going, and reduce speed.
• Always start your e-bike with pedaling . Never push thumb throttle to Max without pedaling.

• Batteryspace is not responsible for any damage cause by misunderstanding and misuse! Please read instruction carefully before assembling.

Specifications vs different Battery Options (this is a reference chart only)

Battery Option	36V 7.5Ah SLA battery	36V 10Ah NiMH battery	37V 10Ah Li-Ion battery	38.2V 12.8Ah LFP Battery
Battery Pack & Its weight	12 Volt DC, 7 Ah Lead-Acid Gel-Cell Batteries (x3) -with Charger weight: 20 Lb	36V 10Ah NiMH Battery with 3 pcs 12V smart chargers Weight: 12 Lb	37V 10Ah Li-Ion Battery with smart charger Weight: 7 Lb	38.4V 12.8Ah LFP Battery with smart charger Weight: 12 Lb
Wheel Sizes	26 inch Front Wheel
Top Speed	25+ mph	25+ mph	25+ mph	26+ mph
Running Range per charge	12+ miles	15+ miles	15+ miles	20 + miles
Charger	Automatic Smart Charger: 2 Amp@36vdc	Automatic Smart Charger: 1.8 Amp@ each 12V battery modules	Automatic Smart Charger: 1.7 Amp @ 37V battery module	Automatic Smart Charger: 3 Amp @ 38.4V battery module
Charging Time	4-6 hours	6-7 hours	8-9 hours	5-6 hours
Weight	Gross Weight of Kit: 36 lbs (54 lbs w/ext battery pack)	Gross Weight of Kit: 36 lbs (48 lbs w/ext battery pack)	Gross Weight of Kit: 36 lbs (43 lbs w/ext battery pack)	Gross Weight of Kit: 36 lbs (40 lbs w/ext battery pack)
Features	Low cost , but heavy weight	12% less weight then SLA battery and 30% longer run time, but higher cost	21% less weight than 7Ah SLA battery and 35% longer run time at slight higher cost than NiMH pack	Faster and longer than any battery. The lowest cost per cycle

Smart Tips:

• Please always pedaling your bike before giving electric power to avoid over-discharging battery and save battery life.
• Never apply power when stopping and braking that may damage battery
• Travel distance is depended on how do you control your power. This is a power assistant bike. please use pedal on uneven road, or up slope to save battery energy and get longer running.

Note: To determine the size of the wheel you need for your bike, do NOT measure your rim. The wheel size is the rim with the tube and tire installed and inflated. Look on your bicycle tire for the wheel size. It should read something like this: 1.75 (width) X 26 (diameter). This would mean you have a 26" bike. Please click here to view the dimension of the fork that must fit a 26" rim.

Installation Instruction:

1. Please check the polarity first before installing the E-bike kits. Wrong polarity will damage the controller and we don't provide warranty for that.

2. Charge the battery immediately after use.

3. When charging Battery Pack, please put battery in a fire proof container. Always charge in an isolated area, away from other flammable materials. Ex: wood bench, carpet. Never charging the Battery Pack unattended.

4. Must turn off the controller unit before installation.

Please click here to learn how to install the conversion kit to your bike. You may only need 30 minutes to install the kit to a bicycle

The advantages of riding an electric bike:

• Get the experience of riding a bicycle without sweating.
• Use an e-bike for local errands. Why drive a 6,000 lb S.U.V. - 2 miles to the corner store or post office when an electric bicycle will get you there in the same amount of time - without the wear and tear on your car, and without polluting our atmosphere?
• Use an electric bike to commute to work. If your one-way commute is 10 miles or less, why not ride an e-bike instead of driving? If you take surface streets, you'll probably arrive at work the same amount of time it would've taken you to drive. Perhaps even less if you must fight morning and afternoon traffic, since a bicycle is much more maneuverable.
• Get a little exercise. Even though your bike is electric; you can still pedal along with it as much as you care to.

Laws governing electric bicycles:
There are new federal guidelines concerning electric bicycles, and each state/municipality will have codes of their own. Suffice it to say: electric bicycles powered under 750 watts - that do not exceed 20 mph - are generally still classified as a "bicycle", and will not have restricted use. Click here for Federal and state of California codes.

Customer Reviews:

• My review of the BD36 E-bike conversion kit sold at BatterySpace.com This electric bike conversion combines the state of art E-bike technology that uses a directly driven Hub Motor. This allows you to change almost any bicycle into a personal electric

Manufacturer Warranty:
