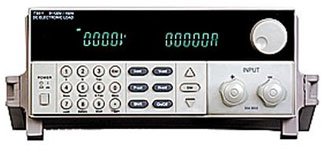

DC Programmable Electronic load: 30A, 150W

DC Programmable Electronic load: 30A, 150W


High performance and affordable single channel DC electronic load. IT8511 DC electronic loads provide you with the flexibility to test a wide range of applications from power supply, charger to battery. The high resolution voltage(1mV), current(0.1mA) measurement system provides both accuracy and convenience, and eliminates the need for a DMM, external shunts and wiring.IT8511 DC electronic loads are the most cost effective choose in your power testing application.

Feature:

  • High accuracy and resolution 1mV/0.1mA
  • Constant current(CC) / Constant Voltage(CV) / Constant Resistance (CR) / Constant Wattage (CW) Operation Mode
  • Free software for remote control
  • Intellective fan cooling
  • GPIB / USB / RS232 Interface
  • Self-test at power-on
  • OCP / OVP / OPP / OTP Protection
  • VFD display
  • Battery test and short test function
  • Convenient numeric keypad
  • Remote sensing capability
  • Auto test function without Computer
  • Standard Accessories
    • AC INPUT CABLE
  • Please click here to download the user Manual
  • Please click here to download the PV8500 Software Manual
  • 3 months warranty

Specification:

Input Rating - 150W, 120/220VAC selectable ,30A
CC-MODE Range 0-3A 0-30A
Resolution 0.1mA 1mA
Accuracy 0.05%+0.1%FS 0.1%+0.1%FS
CR-MODE Range 0.1-99ohms 100-4Kilo-ohms
Resolution 0.01ohms 1ohms
Accuracy 1%+0.3%FS 1%+0.8%FS
CV-MODE Range 0-18V 0-120V
Resolution 1mV 10mV
Accuracy 0.05%+0.02%FS 0.05%+0.025%FS
CW-MODE Range 0-100W 100-150W
Resolution 1mW 10mW
Accuracy 1%+0.1%FS 1%+0.1%FS
V-Measurement Range 0-18V 0-120V
Resolution 1mV 10mV
Accuracy 0.02% + 0.02%FS 0.02% + 0.025%FS
A-Measurement Range 0-3A 0-30A
Resolution 0.1mA 1mA
Accuracy 0.1% + 0.1%FS 0.2% + 0.15%FS
Short Circuit Current ~30A
Resistance ~40milli-ohms
Temperature Operating 0-40'C
Battery Test Capacity MAX 999AH
Transition Frequency 0.1Hz - 1KHz
Dimension (mm) LxWxH 354.6x 214.5 x88.2

LED display for 17.61VDC 3.505A Programmable load (Excluded 18AWG wire)

Utilize the IT8511 DC electronic loads with Excluded Li-Ion 18650 18.5V 5.2Ah pack located in Excluded Ov-SS-00AB Gravity Convention Oven with Digital Display

Price: $950.88
