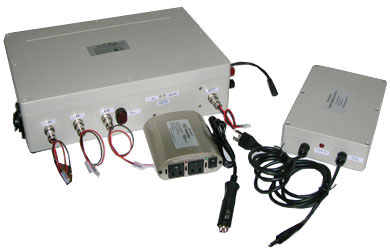

Packing	1 pcs 11.1V 80Ah Polymer Li-Ion battery pack is made of 12 pcs of 10 Ah (9059156) , 10A drain rate in 3s4p connection The battery pack is placed in ABS Fire Retardant / water-proof Enclosure (10-48) to protect battery from wet weather, drop impact and fire accident 1 pcs 150W DC power supply (AC charger) Input: 110VAC, Output: 14VDC, 11A 1 pcs 150W AC/DC inverter (Converted from 12VDC to 110VAC) 1 pcs 2pin female Canon plug connector for Solar Charger terminal. 3 pcs 4pin female Canon plug connector for for 3.3VDC, 5VDc &12VDC output Terminal one pcs 4' long coil cord male car lighter plug(15A limited) for connecting your device to the battery pack
Voltage	Voltage: 11.1V (working) 12.6V ( peak) 7.5V ( cut-off)
Capacity	80 Ah ( 888 wh)
Protection	Four PCM (10 A) with balancing function are installed with the battery pack and protects the battery from Overcharge (>12.6V) Over discharge ( < 7.5 V) Over drain ( > 40 Amp) Short circuits Four 7 Amp polyswitch installed to limit max. discharging current at 28 A
Prewired	Charger terminals: Two charging terminal with built in smart charging circuit inside box DC charging terminal with 2 pin Canon connector for charging from solar panel with 8Amp Max charging current, 18V Max charging voltage. 2" long Trail-Tech female plug for charging by included AC charger (10+ charging time) Car light socket is installed on the box to accept charge from 12V DC power One 110VAC to 12V DC power supply (150 W ) is included Discharging terminal: Four DC output terminals are built in 12VDC via Car lighter socket 3VDC via 4 pins Cannon male connector 5VDC via 4 pins Cannon male connector 12VDC via 4 pins Cannon male connector You may connect the Car lighter socket by included 4' long coil cord male car lighter plug (15Amp Max Discharge current) DC-AC inverter: one 150W DC-AC inverter is included. Connect it to car socket , the battery box can provide 110V AC to run any device under 150W
Max. Discharging Rate	28Amp limited by polyswitch. 15Amp limited by included coil cord male car connector ( If you plug the pack by included coil cord male car plug, The maximum current drawn shall be 15Amp)
The included 2/4pin female Canon plug attached to Solar charge terminal and 3V,5V,12V Terminal
Dimension (LxWxH)	Battery Box: (LxWxH); 380mm (15.0") x 260mm (10.2") x 115mm(4.5"), Weight: 7 kg AC-DC Power Supply Dimension: 225mm (8.9") x 150mm (5.9") x 60mm (2.4"), Weight: 1 kg DC/AC Inverter Dimension: 135mm (5.3") x 100mm (3.9") x 45mm (1.8"), Weight: 0.5Kg
Weight	8.5 kg
Charger (Built in )	Built in smart Charger circuit from solar panel 12-17V 8A max. and cut-off power when battery is full Built in smart charger circuit from 12V (10A) DC power supply and cut-off power when battery is full
Warning	Li-Ion battery may be exploded if misusing. We are not responsible for any damages or losses caused by mis-using (included but not limited to: miss-charging, miss-discharging, any changes of this battery pack, miss-assembling battery packs) . Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident Please check battery polarity before plug battery into light. Never make wrong polarity connection. For safety warning please see the link here
Battery Pack Configuration
Operation Instruction	Please click here to view the operation instruction
