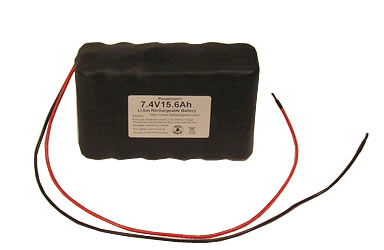

Li-Ion Module: 7.4V 15.6 Ah (115.4 Wh)

Customized Li-Ion Module: 7.4V 15.6 Ah (115.4 Wh) with prewired PCB


Packing
  • 7.4V , 15.6 Ah battery pack is made by 12 pcs High quality 2600mAh 18650 Li-Ion cells, packed in 2S6P configuration with 1 PCB
  • The battery pack is Wapped by white PVC shrink tube
Voltage Voltage: 7.4V (working) 8.4V ( peak) 5.0V ( cut-off)
Capacity 15.6 Ah ( 115.4 wh)
Protection
  • 1 PCB (5A) installed with the battery pack and protects the battery from
    • Overcharge (>6.3V)
    • Overdischarge ( <4.6V)
    • Over drain ( > 5 Amp)
    • Short circuits
  • One 2 Amp polyswitch installed in the pack to limit max. discharging current to 2.0 Amp and to protect wrong polarity
Prewired
  • 2" length #18 AWG wire installed with battery pack.
Max. Discharging Rate
  • 2 Amp Max. limited by 1 polyswitch ( 2A)
Dimensions 113 mm x 40 mm x 68 mm ( L x W x H )
Weight 1.35 lb
Smart Tips
Applications

Warning

  • We are not responsible for any damages or losses caused by misusing (included but not limited to: mis-charging, mis-discharging, any changes of this battery pack, mis-assembling batterypacks...)
  • Always pay attention when charging the battery pack. Battery shall put in a place or container with fire - proof to avoid any accident
  • Please always check battery polarity before connection to device. Never make wrong polarity connection
  • For safety warning please see the link here
Price: $213.95
