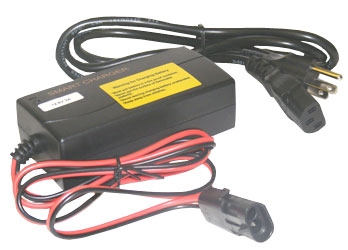

Customize Smart Charger (3.0 A) for 12.8V (4 cells) LiFePO4 Battery Pack, 110-240VAC with Delphi Connector

Customize Smart Charger (3.0 A) for 12.8V (4 cells) LiFePO4 Battery Pack, 110-240VAC with Delphi Connector


  • Customize Smart Charger is designed for rapidly charge capacity > 3Ah 12.8V(4 Cells) LiFePO4 battery. It features a three stages charging method ( Constant Current, Contant Voltage , Trickle charge mode) without overcharge the battery with Delphi Connector

  • Connector: Delphi Packard 2 Position Weatherpack Shround P/N: 12010973 Qty = 1

      • White wire - position A
      • Black wire - position B
    • Pins: for 18-20 AWG wire. P/N: 12089040 Qty = 2
    • Cable Seal (Red): P/N: 12015899 Qty = 2

Specifications

  • INPUT
    • AC input voltage 90 to 240 VAC Worldwide power support
    • Input frequency 47-63Hz
    • Inrush current 10A at 25oC , Cold start
    • Input Current Max 2.0A
    • Efficiency 80% at rating power, 115VAC 50Hz
  • CHARGE
    • The Battery range is between 3AH to 25AH
    • Max. charging current: 3A
    • Reverse Polarity Protection
    • Short Circuit Protection
  • OUTPUTS
    • 3.0A charging current
  • ACTIVE STATE

Active State

Model

Output current

Output voltage

Bicolor LED

1.Fast Charge

CC mode

3.0A

14.5V

Red

2.Continue Charge

CC&CV mode

3.0A or below

13.8V+/-0.20V

Red

3.Stand-by charge

CV mode

<0.6A about

13.8V max

Green
Price: $23.95
