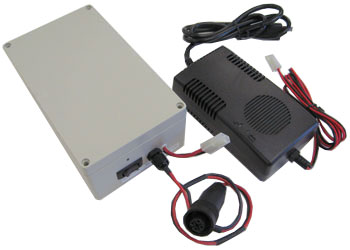

Customize Li-Ion Box Battery (296 Wh) with Regulated Output 12V-13.2V (8A rated) & Low Battery Alert (Anderson Wire Open wire) with 3A Li-Ion charger

Customize Li-Ion Box Battery (296 Wh) with Regulated Output 12V-13.2V ( 8A rate) with 3A Super-Fast Charger


Packing
  • Customize 14.8 V 20Ah pack is made by two 14.8V 10Ah Polymer Li-Ion module in parallel connection
  • Battery is placed in ABS Fire Retardent / water-proof Enclosure (10-22) to protect battery from wet weather, drop impact and fire accident with seperate charge and discharge terminals
  • Two selectable regulated voltages at 12V or 13.2V
    • By selecting 12V position, the smart Li-Ion battery pack can replace all types of 12V NiMH battery packs with higher energy and much less weight, such as:
      • Portable video light battery packs
      • Portable radio batteries
      • On-the-go battery pack
  • Built in Low battery alert function. If battery voltage drops below 11V, a tone sounds for 10 seconds to remind you to recharge the battery.

Voltage Voltage: 14.8V (working) 16.8V ( peak) 11.0V ( cut-off)
Capacity 20 Ah. (296 Wh)
Protection
  • Two PCBs (10A) are installed with the battery pack to protect the battery from
    • Over charge (>16.8V)
    • Over discharge ( < 11.0 V)
    • Over drain ( > 20 Amp)
    • Short circuits
  • Two 7.0 Amp polyswitch installed to limit max. discharging current at 14A and to protect wrong polarity
  • Two 4A DC to DC regulators to gives you 12V or 13.2V at 8A
Prewired
  • Discharge terminal: 16'' 16AWG wire to 693-2 connector
    • pin 1 = positive, pin 4 = negative
  • Charge terminal: 4" long Standard Male Tamiya plug
Max. Discharging Rate 8 Amp limited by regulator, upto 12A for less than 5 minutes
Dimension (LxWxH) 200mm x 120mm x 75mm (7.87" x 4.72" x 2.95")
Weight 2585g (5.7 lb )
Smart Tips
  • Included one 14.8V (3A) Smart Li-Ion battery charger to recharge this battery pack.
    • The charging time is about 9 hours.
    • Must plug the charger to charge terminal to recharge battery (Standard Male Tamiya plug)
Applications
  • Designed for running 12V HID light upto 96W
  • Can be used for video light battery pack in outdoor
  • Can used as external battery pack to run DC devices (other than 12V or 13.2V) via DC-DC convertor
  • Burntime = 153.8 Wh / Wattage of device
Warning
  • Li-Ion battery may exploded if misusing. We are not responsible for any damages or losses caused by misusing (included but not limited to: mis-charging, mis-discharging, any changes of this battery pack, mis-assembling battery packs)
  • Please check battery polarity before plug battery into light.
  • For safety warning please see the link here
Price: $375.95
Buy Product Online | Visit Store Home
