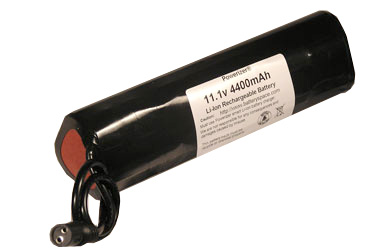

Customize Li-Ion Battery Pack 11.1 V 4400mah (TRIANGLE SHAPE) using 8650 2200mah cells with Charger

Customize Li-Ion Battery Pack 11.1 V 4400mah (TRIANGLE SHAPE) with 1.5A Charger


Packing
  • High quality 11.1 V Li-Ion rechargeable battery pack made of six 2200mAh cylindrical 18650 cells with PCB and polyswitch for full protection
  • Packed in triangle shape (3S2P)
  • The battery pack is wrapped by white PVC shrink tube
Voltage Voltage: 11.1V (working) 12.6V ( peak) 7.5V ( cut-off)
Capacity 4400 mAh ( 48.8 wh)
Protection
  • One PCB (8A) installed with the battery pack to protect battery from:
    • Overcharge (>12.6V)
    • Over discharge ( < 7.5 V)
    • Over drain ( > 8 Amp)
    • Short circuits
  • Two 4.2 Amp polyswitch installed to limit max. discharging current at 4.2A and to protect wrong polarity
Prewired

8" length Univeral 2-pins female connector cable

Max. Discharging Rate 4.2Amp limited by polyswitch
Dimensions

1.4 " x 1.3" x 4.8" inch (Width x Thickness x Length)

Weight 185 g ( 12 Oz )
Smart Tips
Applications
  • Perfect for building 11.1V battery pack for RC toy, robots, diving lights and DVD external battery.
  • You can make 11.1V 8.8 Ah Li-Ion battery pack quickly by parallel connecting two PCB ready battery module. Please don't make parallel connection with more than three modules to avoid uneven charge.
Warning
  • Li-Ion battery may be exploded if mis-using. We are not responsible for any damages or losses caused by misusing (included but not limited to: mis-charging, mis-discharging, any changes of this battery pack, mis-assembling batterypacks...) .
  • Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident
  • Please check battery polarity before plug battery into light. Never make wrong polarity connection.
  • For safety warning please see the link here

Price: $98.00
